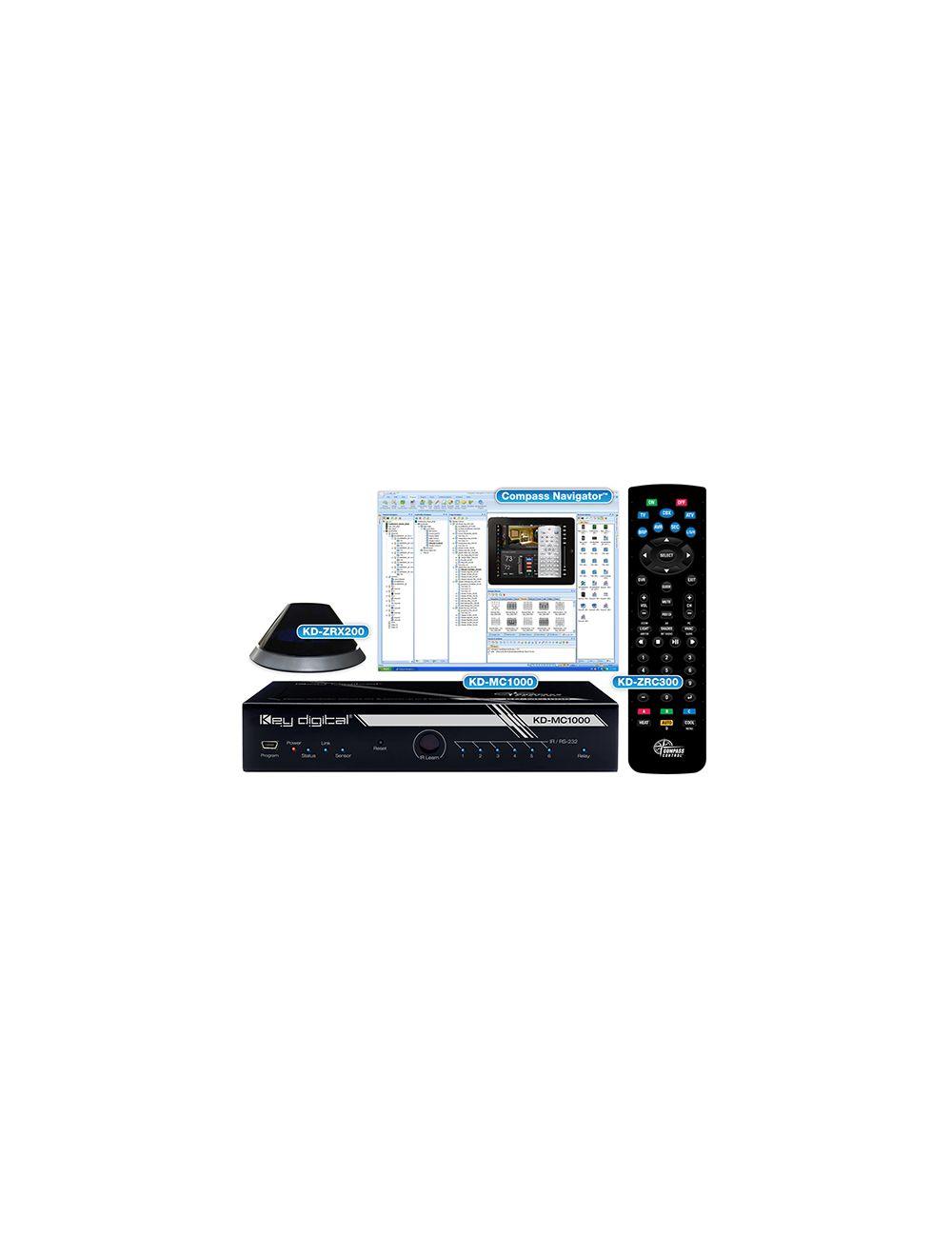

Key Digital KD-CCKIT1000 Master Controller Kit: Includes Master Controller, ZigBee Wireless IR Universal Handheld Remote and ZigBee Wireless to RS-232 Tx & Rx

Included Product Details

• KD-MC1000 - Master Controller (Wired/LAN, supports up to 8 ports)
• iOS Backbone: First major control system built from the ground up using Apples iOS devices iPad, iPad mini, iPhone, and iPod touch
• Total 8 Ports: 6 MCP35 Multi-Function I/O Ports, 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port
• Bi-Directional ZigBee Wireless 2.4 GHz: Dedicated for ZigBee Wireless 2.4 GHz & IR Universal handheld remote (Model: KD-ZRC300) and ZigBee Wireless 2.4 GHz Tx & RX (Model: KD-ZRX200)
• USB Support: USB port for firmware upgrades and initial setup
• Built-in IR Learning: Front-facing IR window enables learning of IR codes from external IR remotes
• LAN: Direct wire to LAN via RJ45
• Relay Control: Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital KD-CCXR200 Converter
• Real Time Master Control: Allows user to store variables and events internally with/without iOS device
• Compass Navigator: PC Editor allows fast and easy programming
• Device Configuration: Allows all functions and integration into Compass Project via IP and Compass Navigator software
• Complete Control: Audio, video, HVAC, lighting, shades, security, and more
• Control Distribution: Integrates with all Key Digital Control Routing HDMI Switchers to expand the control system and add control ports
• No need for PC or Mac in the system: All system performance is controlled by KD-MC1000 Master Controller and any iOS device
• Compass Alliance Partners: Pre-loaded code sets - Full Partner Listing

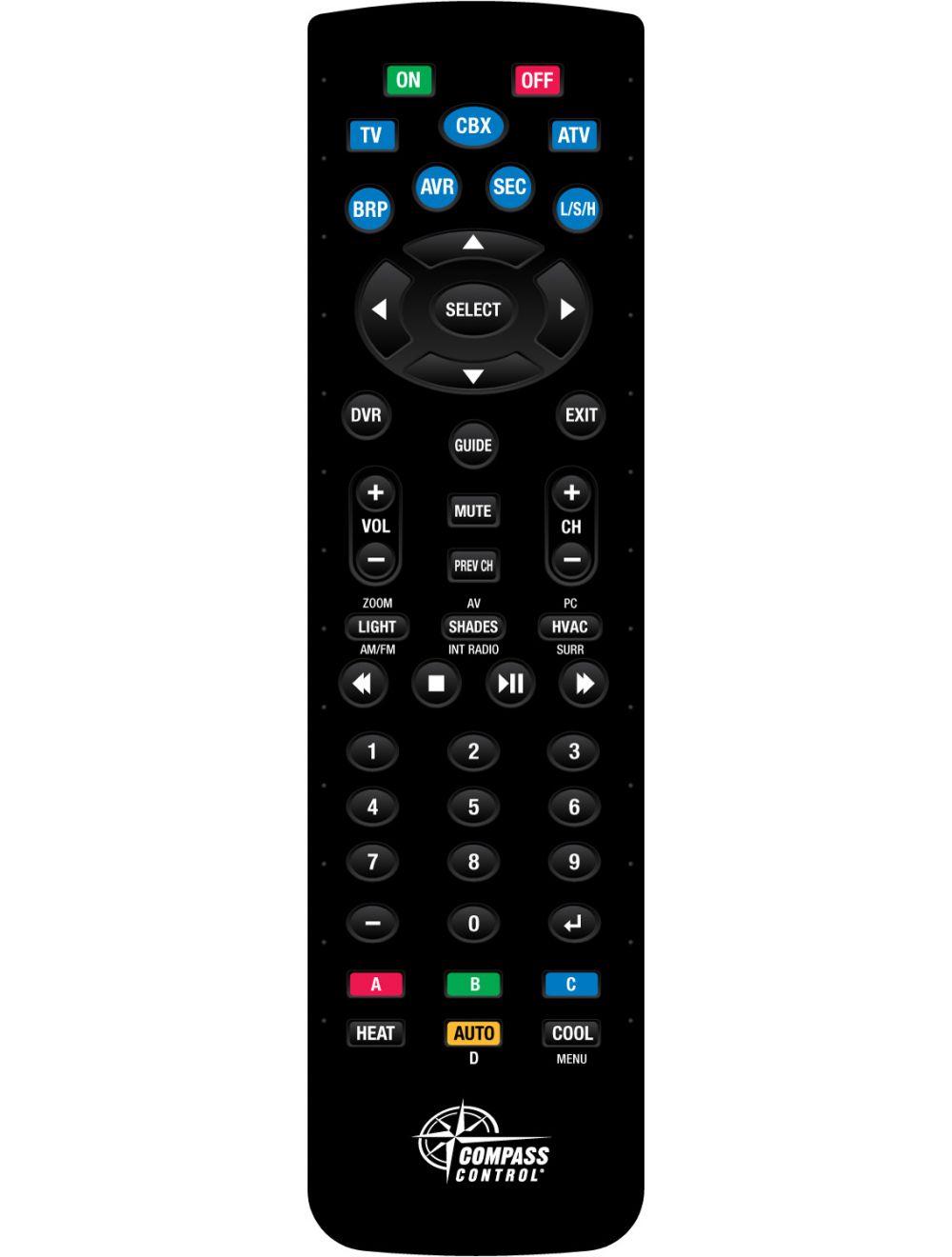

• KD-ZRC300 - ZigBee Wireless 2.4 GHz & IR Universal Handheld Remote Control
• 48 Programmable Hard Buttons: For IR and/or RF ZigBee commands, support for unlimited macro and variable actions, programmable via USB on PC or Mac with Compass Navigator PC Software
• ZigBee Signal Transmission: Up to 100 through walls, doors and floors
• Device Control: Up to 10 devices with line-of-sight IR control or RF Wireless 2.4 GHz ZigBee control
• Features: Motion detected automatic backlighting and USB recharging

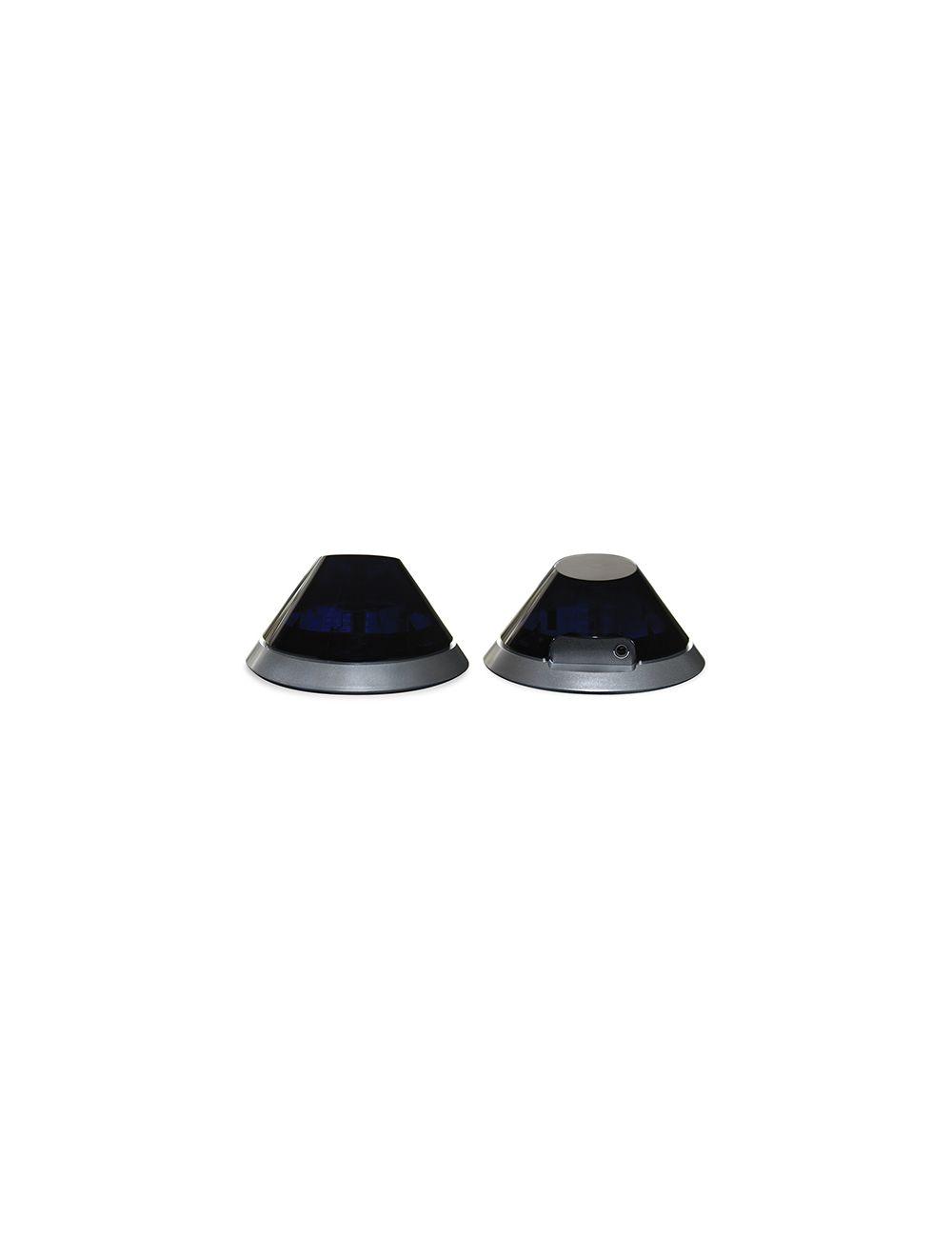

• KD-ZRX200 - ZigBee Wireless 2.4 GHz to RS-232 TX & RX
• ZigBee Wireless 2.4 GHz Receiver: Used in conjunction with KD-MC1000 Master Controller and KD-ZRC300 Wireless Remote
• Boosts ZigBee Range: Bi-Directional ZigBee Wireless 2.4 GHz communication with KD-ZRC300 up to 100'
• No external power required
• Compass Navigator - PC Editor Software
• System Programming: Allows fast and easy programming of the Compass Control system and connected devices
• Flexibility: Allows for both basic module-based and complex custom GUI level programming
• Advanced Programming: Create unique and powerful custom control interfaces through advanced programming
• Ease of Setup: Comes complete with additional IR/RS-232/TCP/IP modules
