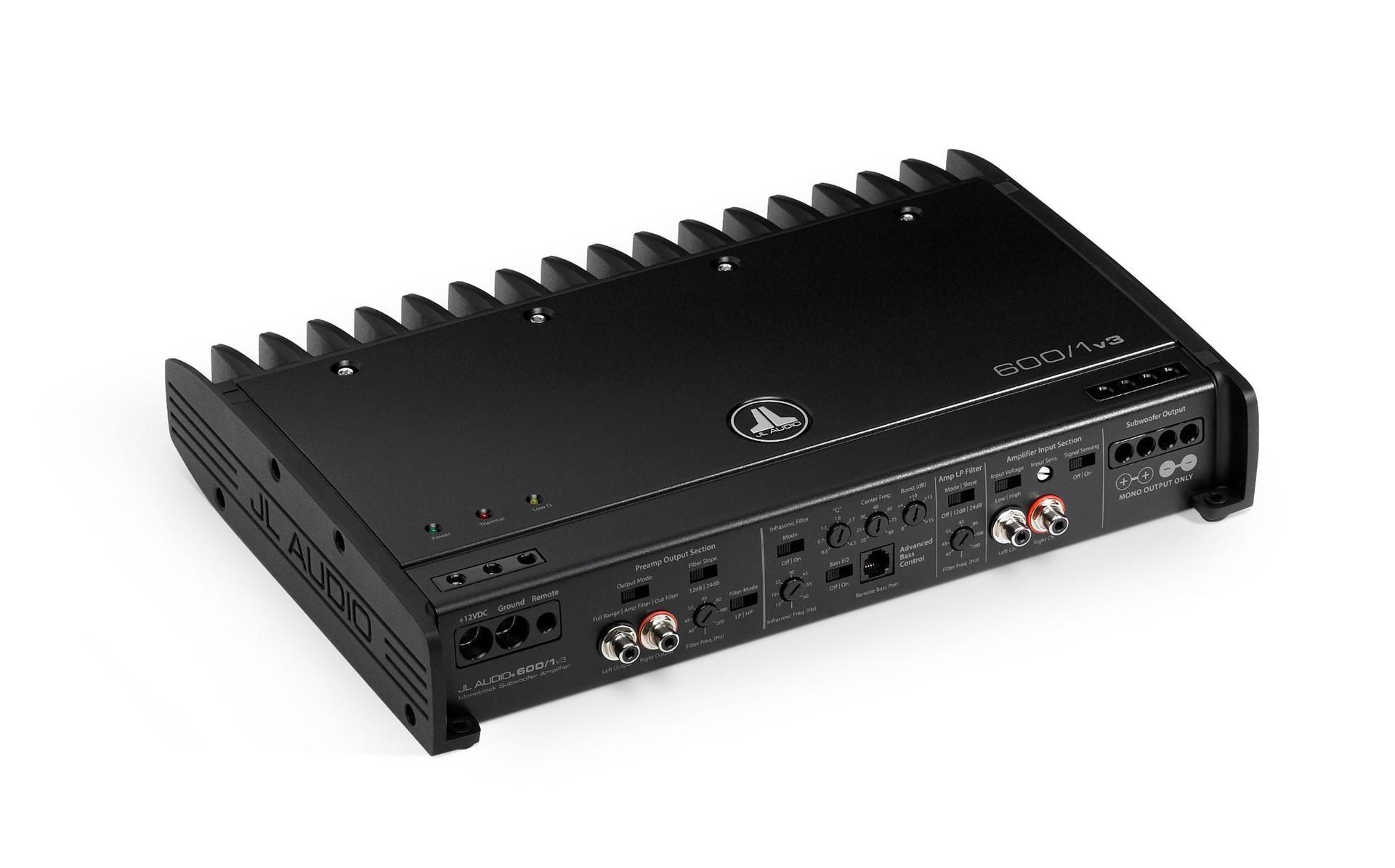

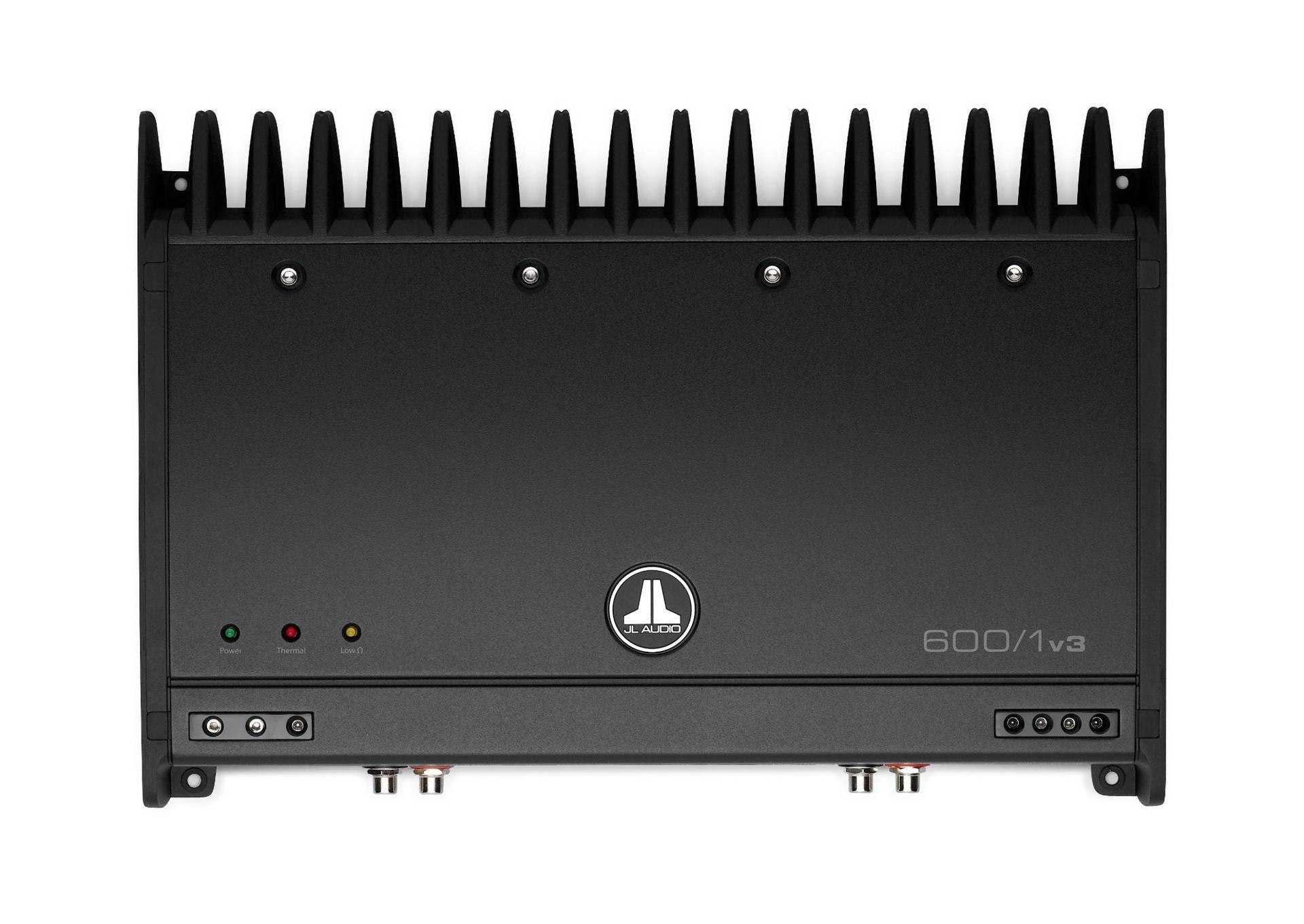

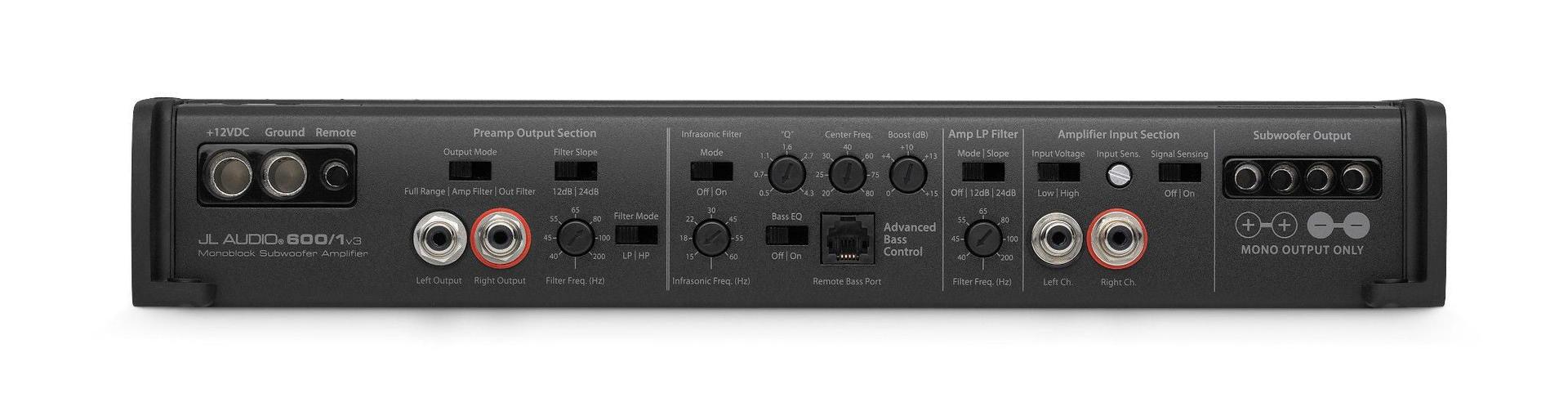

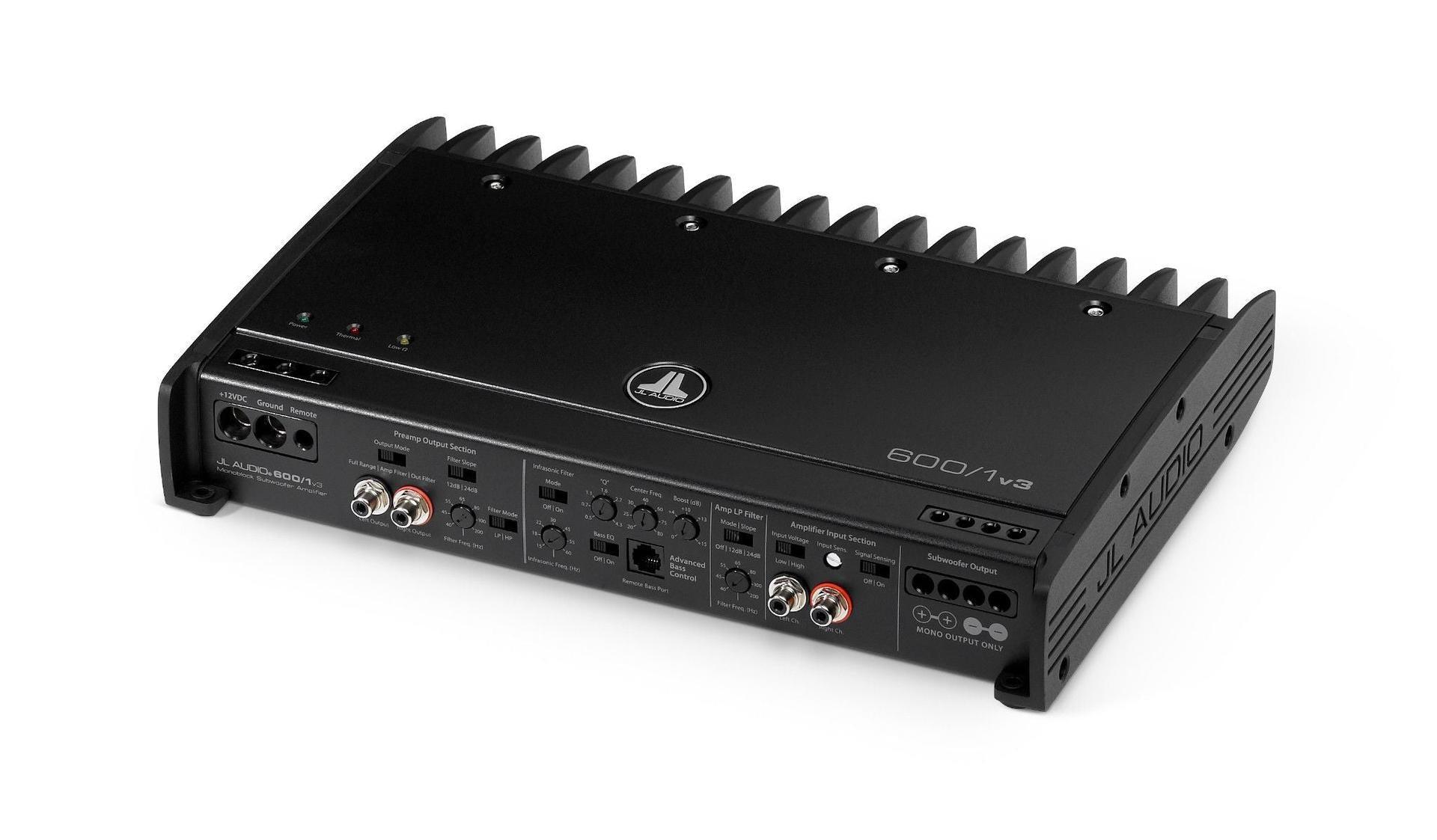

Monoblock Class D Subwoofer Amplifier, 600 W x 1 @ 1.5-4 ?
The best-selling amplifiers of all time are back in black!
The 600/1v3 deploys efficient Class D technology with a patented control circuit and JL Audio's signature R.I.P.S. power supply design to ensure full power delivery (600 W) over a wide range of load impedances and vehicle voltages.
A very complete set of signal processing features, including a parametric bass EQ and fully variable infrasonic filter, round out the package.
This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.
@ 4 ? | 600 W RMS x 1 |
@ 3 ? | 600 W RMS x 1 |
@ 2 ? | 600 W RMS x 1 |
@ 1.5 ? | 600 W RMS x 1 |
@ 4 ? | 600 W RMS x 1 |
@ 3 ? | 600 W RMS x 1 |
@ 2 ? | 600 W RMS x 1 |
@ 1.5 ? | 600 W RMS x 1 |
Frequency Response | 5 Hz - 250 Hz (+0, -1dB) |
S/N Ratio, referred to highest rated power | >95 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W (Main Channels) | >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
Damping Factor @ 4 ? | >500 / 50 Hz |
Damping Factor @ 2 ? | >250 / 50 Hz |
THD+N @ Rated Power (Main Channels) | <0.05% @ 4 ? |
Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
Min Copper Power / Ground Wire Gauge | 4 AWG wire |
Fuse Rating | 50 A (AFS, AGU or MaxiFuse) |
Filter Modes | Low-Pass only |
Filter Slope (dB/Octave) | 12 dB or 24 dB |
Filter Frequency Range | 40-200 Hz |
Detented, Calibrated Filter Freq. Potentiometer | Yes |
Filter Defeatable? | Yes |
Infrasonic Filter | Variable, Defeatable |
Bass Boost EQ | Parametric |
Output Polarity Switch | No |
Remote Subwoofer Level Control | No |
Remote Bass EQ Boost Control | Optional (RBC-1) |
Pass-Through Preamp Output | Buffered, w/independent filter |
Height (H) | 2.36 in / 60 mm |
Width (W) | 13.40 in / 340 mm |
Depth (D) | 9.25 in / 235 mm |
Brands | JL Audio |
---|---|
Color | Black |
FEATURES
Brands | JL Audio |
---|---|
Color | Black |
