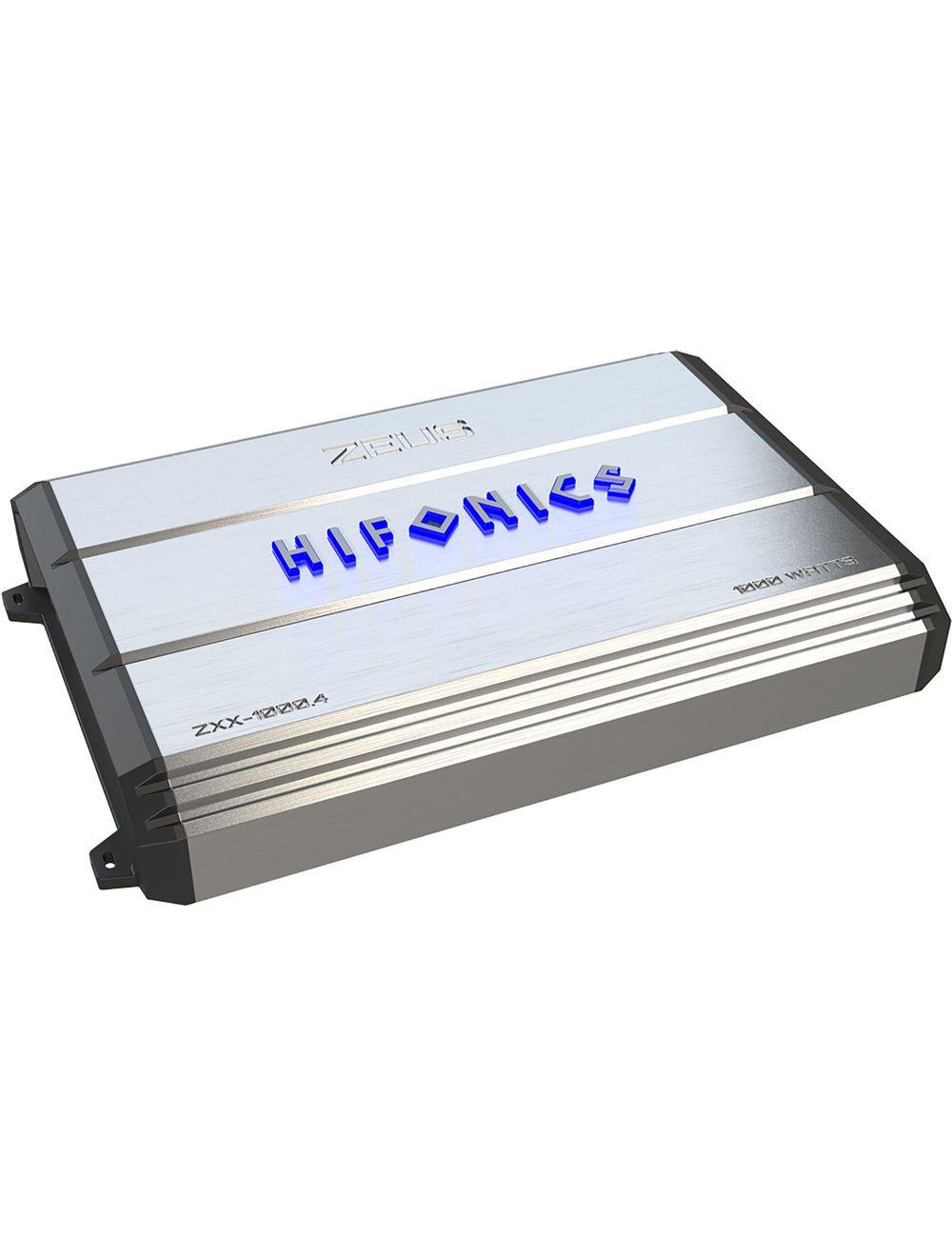

Hifonics ZXX-1000.4 Zeus 4 Channel Bridgeable Amplifier

A classic Hifonics aluminum heatsink with a 1000 Watt 4-channel, bridgeable Zeus car audio amplifier with onboard...
Vendor: Unbranded
SKU: ZXX-1000.4
Availability: Out Of Stock
$279.99
$279.99
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

Hifonics ZXX-1000.4 Zeus 4 Channel Bridgeable Amplifier

Hifonics ZXX-1000.4 Zeus 4 Channel Bridgeable Amplifier

$279.99

Hifonics ZXX-1000.4 Zeus 4 Channel Bridgeable Amplifier

$279.99

A classic Hifonics aluminum heatsink with a 1000 Watt 4-channel, bridgeable Zeus car audio amplifier with onboard electronic crossover

Features & Benefits

  • PRE-AMP CIRCUITRY:Low Noise PreAmplifier
    Maximum low voltage signal from the source unit comes into the car amplifier circuit with minimal distortion
  • INPUTS:Nickel Plated
    High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
  • HI LEVEL INPUTS:Low Level RCA Inputs and Outputs
    Highest sound quality connection
  • OPERATION MODE:2 , 4 channel or 3 channel mode
    Flexible installation allows this amplifier to run in two channel or bridged mono mode.
  • CLASS / TOPOLOGY:Class A/B
    Designed to be high sound quality with minimal distortion
  • OUTPUT DEVICES TECHNOLOGY:PWM MOSFET Power Supply
    Stable power through the PC board with minimal heat generation
  • HEAT SINK:Aluminum
    Old School Hifonics Heat sink for Superior Heat Dissipation
  • POWER SUPPLY:Simpatico Coil Design
    The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
  • OUTPUT CONNECTIONS:RCA Outputs
    Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
  • CONNECTIONS TYPE :Molded / Angled
    Secure connection for all system wires. Angled for ease of access for installation
  • DIAGNOSTICS:Diagnostic Indicators DC, Short Circuit, Thermal and Overload Protection
    Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
  • ILLUMINATION:Illuminated Logo
    The Hifonics logo illuminates when the amplifier is powered, making a #PowerFromTheGods statement in the dark
Specifications
  • CLASS
    Class A/B
  • VARIABLE VOLTAGE
    6V - 0.2V
  • SIGNAL TO NOISE RATIO
    >90dB
  • FREQUENCY RESPONSE
    10Hz-45KHz
  • CROSSOVER TYPE
    Variable Electronic
  • HIGH PASS CROSSOVER
    12DB PER OCTAVE

    60Hz-1.2KHz
  • LOW PASS CROSSOVER
    12DB PER OCTAVE

    30Hz-250Hz
  • BASS BOOST
    0~12dB
  • POWER @ 2-OHMS
    4x250W
  • POWER @ 4-OHMS
    4x125W
  • BRIDGED @ 4-OHMS
    2x500W
  • TOTAL CHANNELS
    4
  • AUDIO INPUTS
    RCA Jack
  • AUDIO OUTPUTS
    RCA Jack
  • POWER TERMINAL 12V/GND
    4 gauge
  • SPEAKER TERMINAL WIRE GAUGE
    14 gauge
  • FUSING
    35A x 3
  • DIMENSIONS
    15.7 x 2.4 x 10 in
    39.8 x 6 x 25.4cm
  • WEIGHT
    9 lbs (4.8 kg)
More Information
UPC Code: 806576226390
MPN Code: ZXX-1000.4
Brands Hifonics
Color Silver
Number of Channels 4-Channel
Minimum Impedance Unabridged 1
Amplifier Class AB
Type 4-Channel
Remote Control Optional
