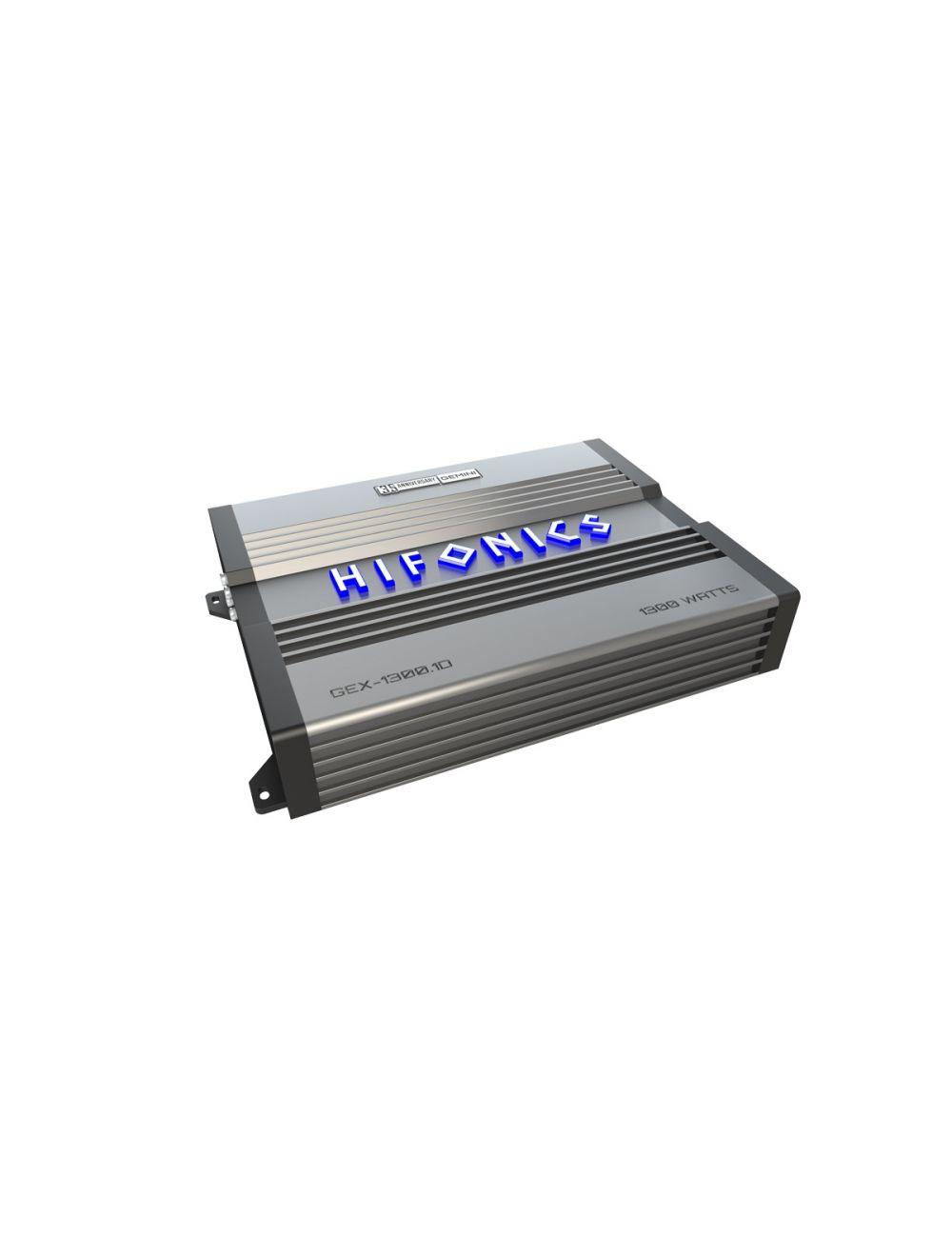

Hifonics GEX1300.1D Gemini Elite 1300 Watts 1 Ohm Stable Mono Car Amplifier

Hifonics Gemini Elite 1300 Watt Mono 1 ohm stable, Super D Class mono subwoofercar audioamplifier. Features include an onboard electronic crossover with angled terminals. Bass remote included.

Features & Benefits

• PRE-AMP CIRCUITRYLow Noise PreAmplifier
  Maximum low voltage signal from the source unit comes into thecar amplifiercircuit with minimal distortion
• INPUTSNickel Plated
  High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• HI LEVEL INPUTSNickel-plated RCA level inputs
  Nickel-Plated RCA jacks create best connection and resist corrosion
• OPERATION MODEOne Channel (Mono) Subwoofer Amplifier
  Mono mode is intended for subwoofers only
• CROSSOVER / SIGNAL SHAPINGVariable Electronic
  Electronic crossovers allow for complete control of the sound. See specifications for specific frequencies
• EQUALIZERElectronic
  Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
• CLASS / TOPOLOGYSuper D-Class
  Hifonics has perfected the latest in digital chip technology to provide you with an extremely efficient, low temperature, high amplification system that others only dream about. There are several options for installation and the mono Super D-Class amplifiers can run at 1, 2 or 4-Ohm as well, for an even tighter bass response!
• OUTPUT DEVICES TECHNOLOGYUltra-Fi MOSFET
  Produces high power with minimal distortion
• HEAT SINKHigh Grade Aluminum
  Heavy duty aluminum alloy heat-sink allows amplifier to quickly dissipate heat while producing maximum power
• POWER SUPPLYSimpatico Coil Design
  The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
• BASS REMOTEBass Remote Included
  Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
• OUTPUT CONNECTIONSRCA Outputs
  Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
• CONNECTIONS TYPEMolded at 45 degrees
  Stress free installation access with room for hands and tools
• DIAGNOSTICS4-Way System Protection Circuitry
  Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• ILLUMINATIONIlluminated Logo
  The Hifonics logo illuminates when the amplifier is powered, making a #PowerFromTheGods statement in the dark

Specifications

• CLASS
  Super D Class
• VARIABLE VOLTAGE
  6.0V - 0.2V
• SIGNAL TO NOISE
  >95dB
• FREQUENCY RESPONSE
  10Hz-300Hz
• CROSSOVER TYPE
  Variable Electronic
• LOW PASS CROSSOVER:
  12DB PER OCTAVE:
  40Hz-300Hz
• BASS BOOST
  0 - 9 dB
• SUBSONIC FILTER
  10Hz-40Hz
• POWER OUTPUT @ 1 OHM:
  1x1300W
• POWER OUTPUT @ 2 OHMS:
  1x650W
• POWER OUTPUT @ 4 OHMS
  1x425W
• TOTAL CHANNELS
  Mono
• AUDIO INPUTS:
  Left & Right RCA Jacks
• AUDIO OUTPUTS:
  Left & Right RCA Jacks
• POWER TERMINAL:
  12V/GND
  4 ga
• SPEAKER TERMINAL WIRE GAUGE
  12 ga
• FUSING
  80Ax1
• DIMENSIONS
  16.5 x 11.25 x 3.38 in
  41.91 x 28.5 x 8.5 cm
• WEIGHT
  8.75 lbs (4.0 kg)
