Crux CGM-01M
Tailgate handle backup cam with active parking lines for select 2014-17 Chevrolet 1500 pickups — connects to aftermarket radio
Active parking lines your Chevy pickup
Crux's CGM-01M package hides a powerful backup camera in a replacement tailgate handle, so that you can access rear view video without compromising the rugged appeal of your Chevy truck. This handy cam enhances your view with active parking lines. As you turn the steering wheel, you'll see your parking lines on your aftermarket radio's screen bend to show you precisely where you're headed in reverse.
An included 23-foot cable connects to the back of an aftermarket radio or screen with a composite video input. Once installed, you'll see a generous, well-lit picture of what's behind you on your radio's display, with a 170-degree wide view and excellent visibility for night driving.
Installing this camera yourself? Here's what you should know.
What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)
What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.
How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.
Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.
Product highlights:
eplacement tailgate handle rear-view camera compatible with select 2014-17 Chevrolet 1500 vehicles
active parking lines
connects to any aftermarket radio with a composite video input
23' extension video cable included
resolution: 480 TV lines
170° wide viewing angle
illumination: 0.2 Lux minimum for night driving
warranty: 1 year
MFR # CGM-01M
What's in the box:

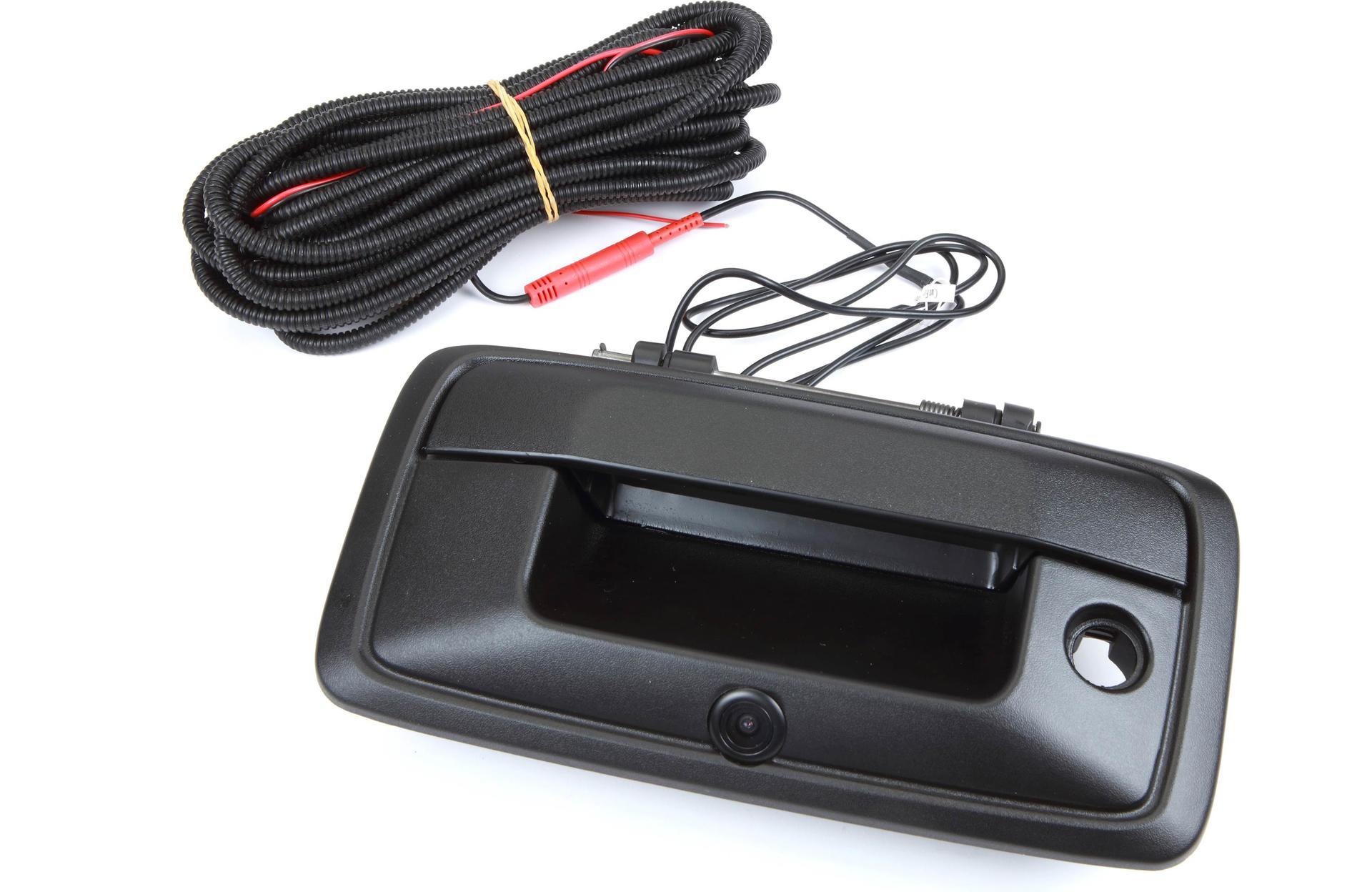

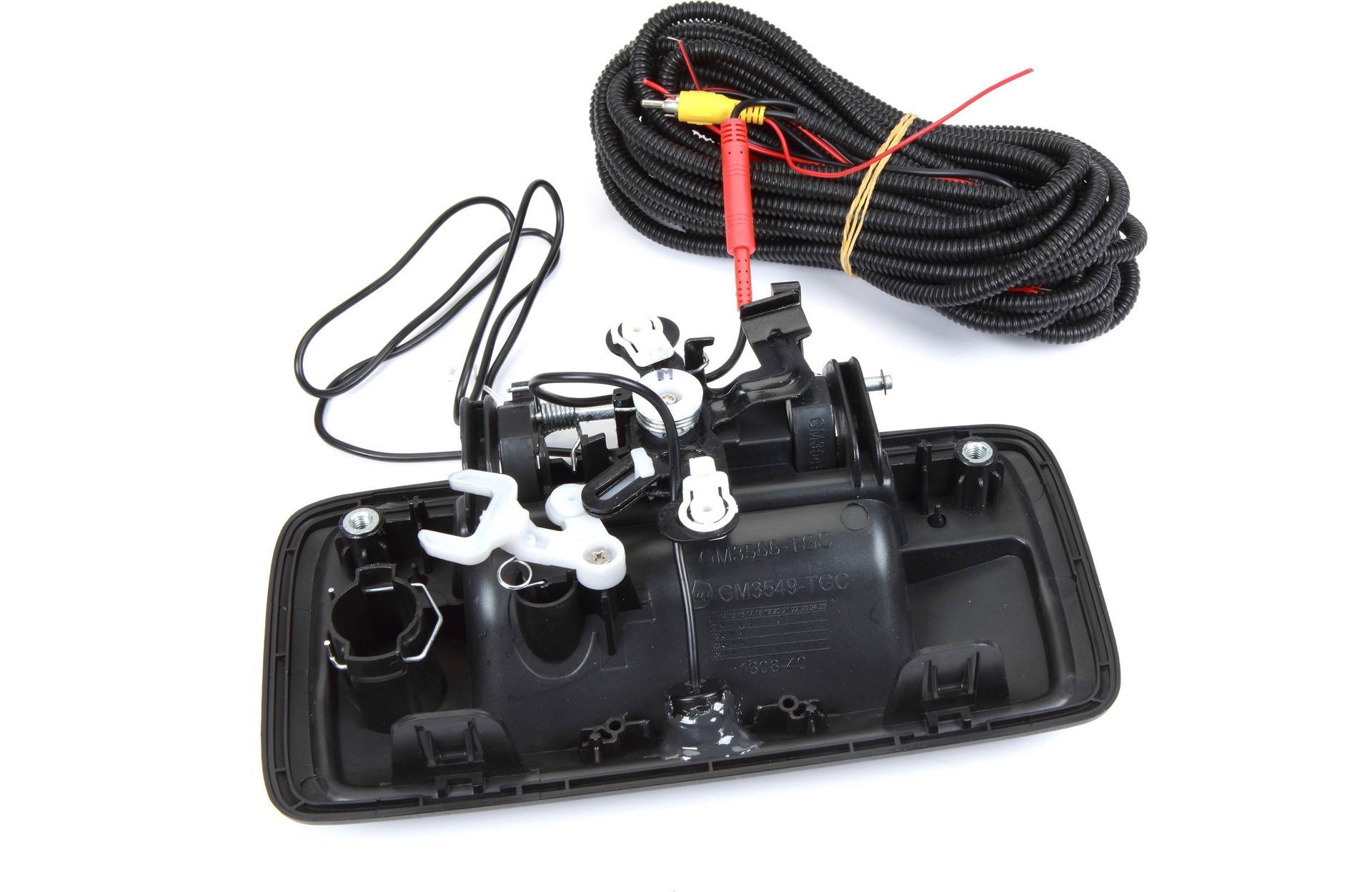

GM Truck tailgate handle camera (attached 6' cable)

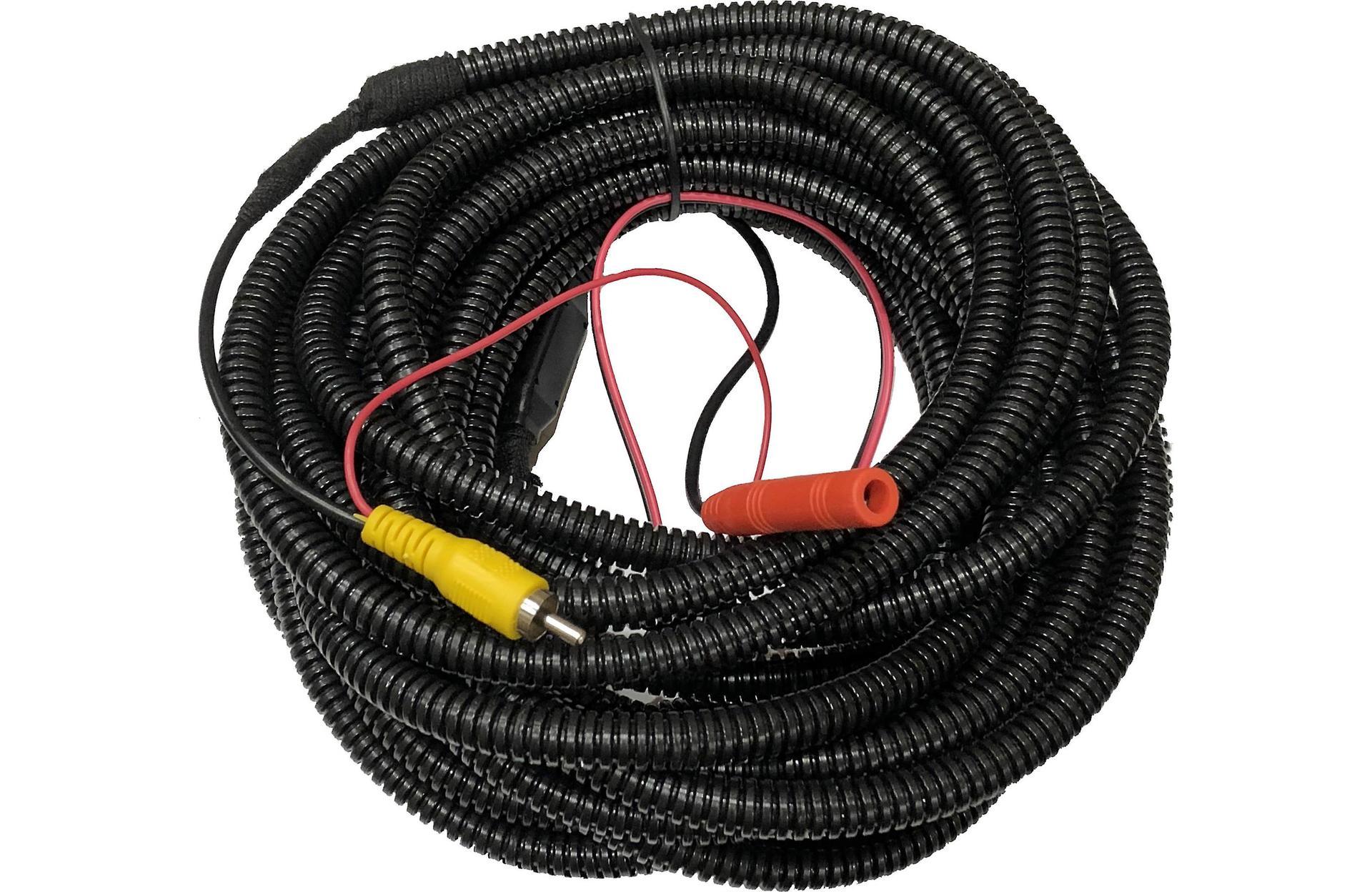

23' Video cable (w/ attached 3' power/ground wires)
2 Wire-taps
6 Wire-ties
18.5mm hole-saw bit
