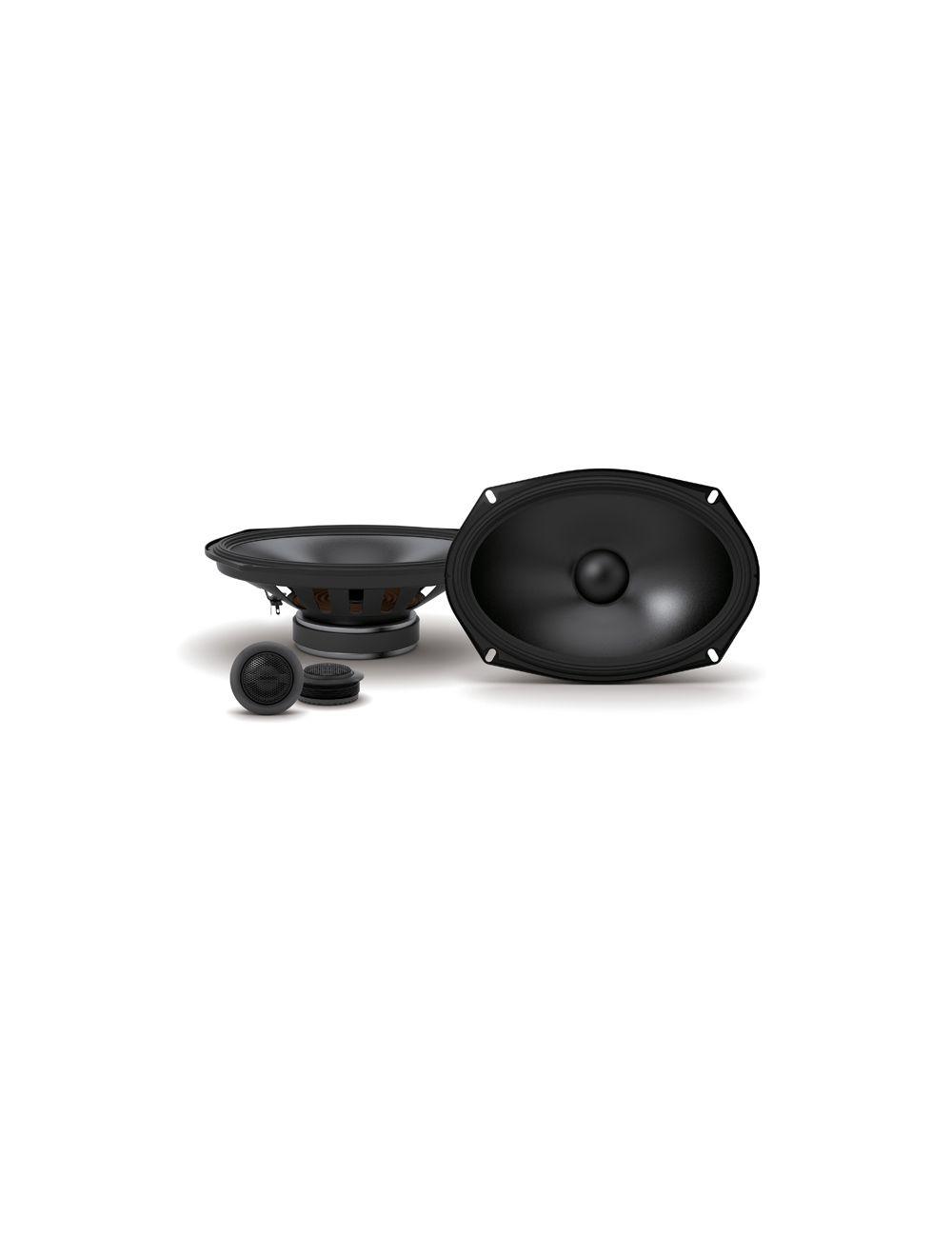

THIS BUNDLE INCLUDES THE FOLLOWING:Alpine S-S69C S-series 6"x9" Component Speaker SystemProduct highlights:component speaker system includes 2 woofers and 2 tweeters
6"x9" carbon fiber-reinforced plastic woofer cone with specialized rubber surround
1" silk dome tweeter with inline crossover
handles up to 85 watts RMS (260 watts peak power)
frequency response: 65-22,000 Hz
sensitivity: 90 dB
woofer top-mount depth: 2-15/16"
grilles not included
What's in the box:Alpine S-S69C owner's manual2 Woofers
2 Bottom mount brackets
2 Tweeters (each has a 29" length of wire attached)
2 Flush mount housings (with tweeters installed)
2 Tweeter grilles
Two 37" Tweeter wires with in-line crossovers (each has quick slides on both ends)
2 Flush mount retention rings
2 Stealth brackets
2 Foam self-adhesive pads
2 Foam self-adhesive rings
Eight 1-3/16" Screws
Eight M4x60mm Machine screws (each screw has a lock washer attached)
Eight M4 Nuts
8 Speed clips
16 Flat washers
8 Split lock washers
8 Spacers
Warranty information
On-line product registration information
Important Notice sheet
Template and specs on box

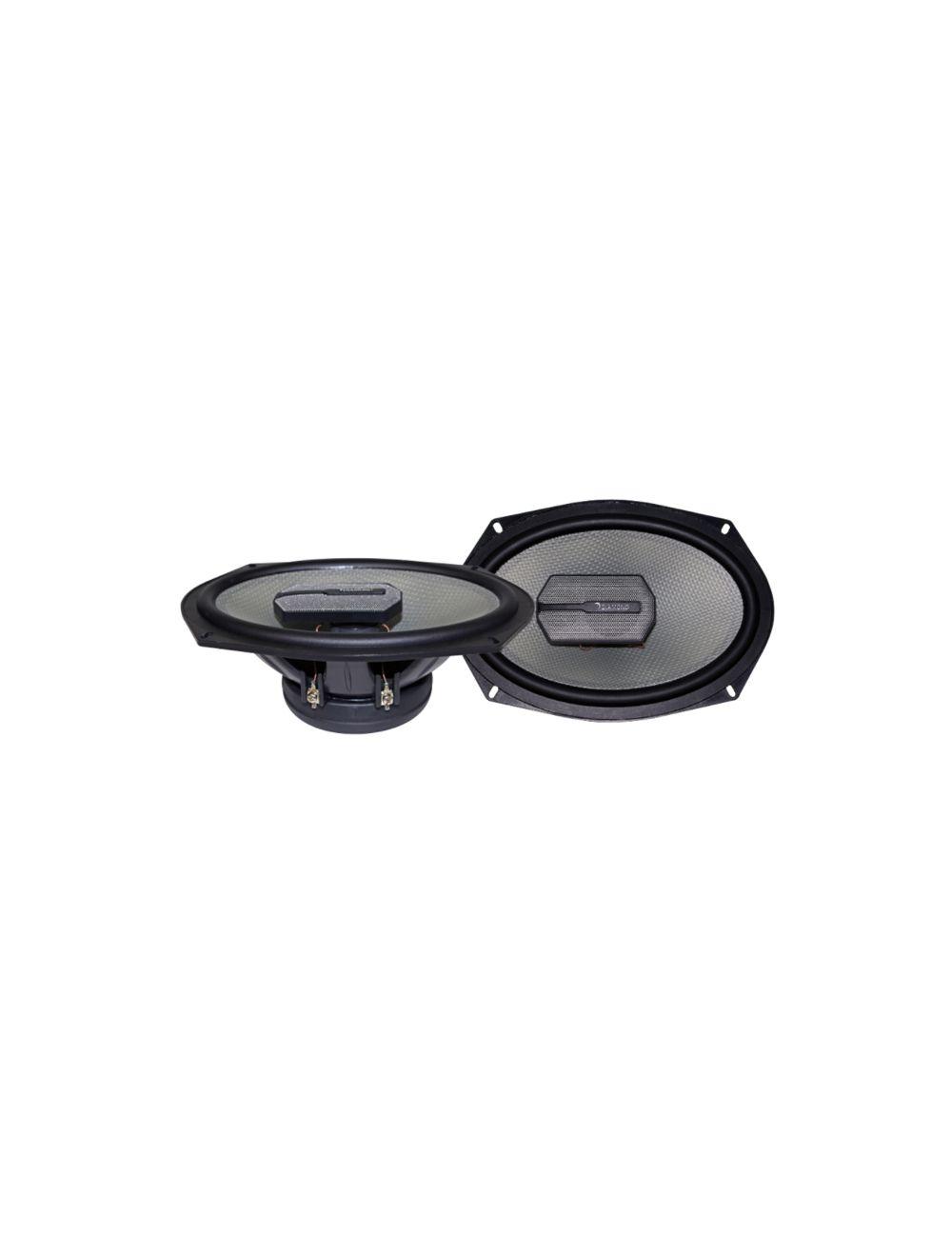

Diamond Audio DMD693 DMD Series 6" x 9" 3-way Coaxial Speakers
Specifications
RMS: 70 Watts / Peak: 140 Watts
13mm PEI Dome and 20mm Silk Dome Tweeters
Nominal Impedance: 4?
Sensitivity (dB @ 1 watt/1 meter): 86dB
Frequency Response: 69Hz - 20kHz
Midrange Cone Material: Reinforced Polypropylene
Product Details:
Diamond Audio DMD693
DMD Series 6" x 9" 3-way Coaxial Speakers
Power Handling:
RMS: 70 Watts
Peak: 140 Watts
13mm PEI Dome and 20mm Silk Dome Tweeters
Nominal Impedance: 4?
Sensitivity (dB @ 1 watt/1 meter): 86dB
Frequency Response: 60Hz - 20kHz
Midrange Cone Material: Reinforced Polypropylene
Midrange Basket Material: Composite ABS
Crossover: Integrated 12dB/Octave
Dimensions:
Total Diameter: 9.2 x 6.4"
Mounting Diameter: 8.46 x 5.79"
Mounting Depth: 2.75
Magnet Diameter: 4.19
