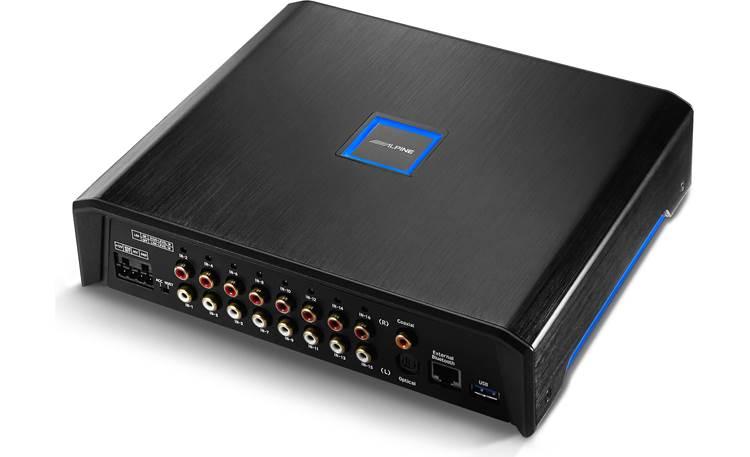

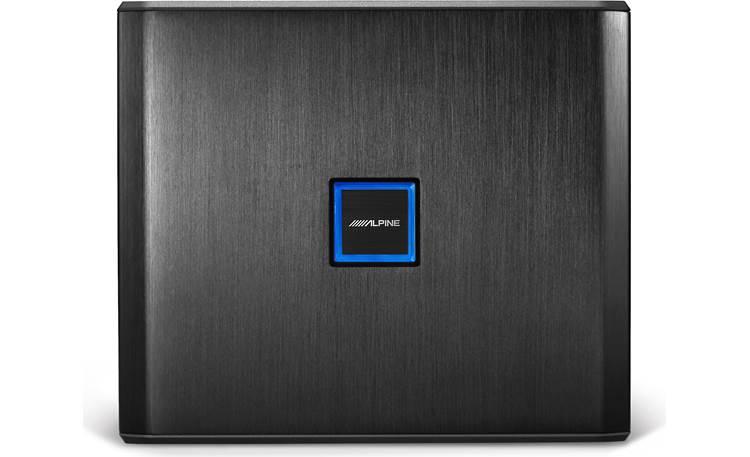

Alpine PXE-X09 16-Channel Hi-Resolution Digital Sound Processor

Product highlights:DSP adjustments and settings made via Bluetooth device, Windows PC via USB, or wired remote includes...
Vendor: Alpine
SKU: PXE-X09
Availability: In Stock
$1,499.95
$1,499.95
Please hurry! Only 1 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

Alpine PXE-X09 16-Channel Hi-Resolution Digital Sound Processor

Alpine PXE-X09 16-Channel Hi-Resolution Digital Sound Processor

$1,499.95

Alpine PXE-X09 16-Channel Hi-Resolution Digital Sound Processor

$1,499.95
Product highlights:DSP adjustments and settings made via Bluetooth device, Windows PC via USB, or wired remote
includes wired LCD remote control, Bluetooth adapter, and USB cable
16-channel digital signal processordownload PXE-X09 Tuning App for iOS or Android device from the Apple APP or Google Play Store
download PXE-X09 Sound Manager for Windows at Alpine.com

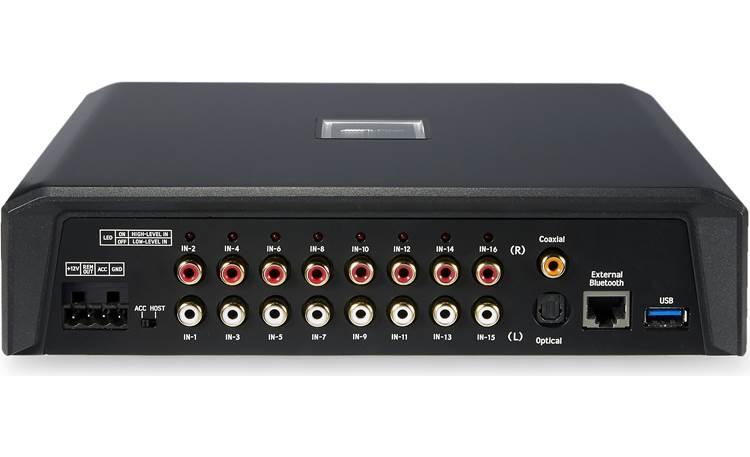

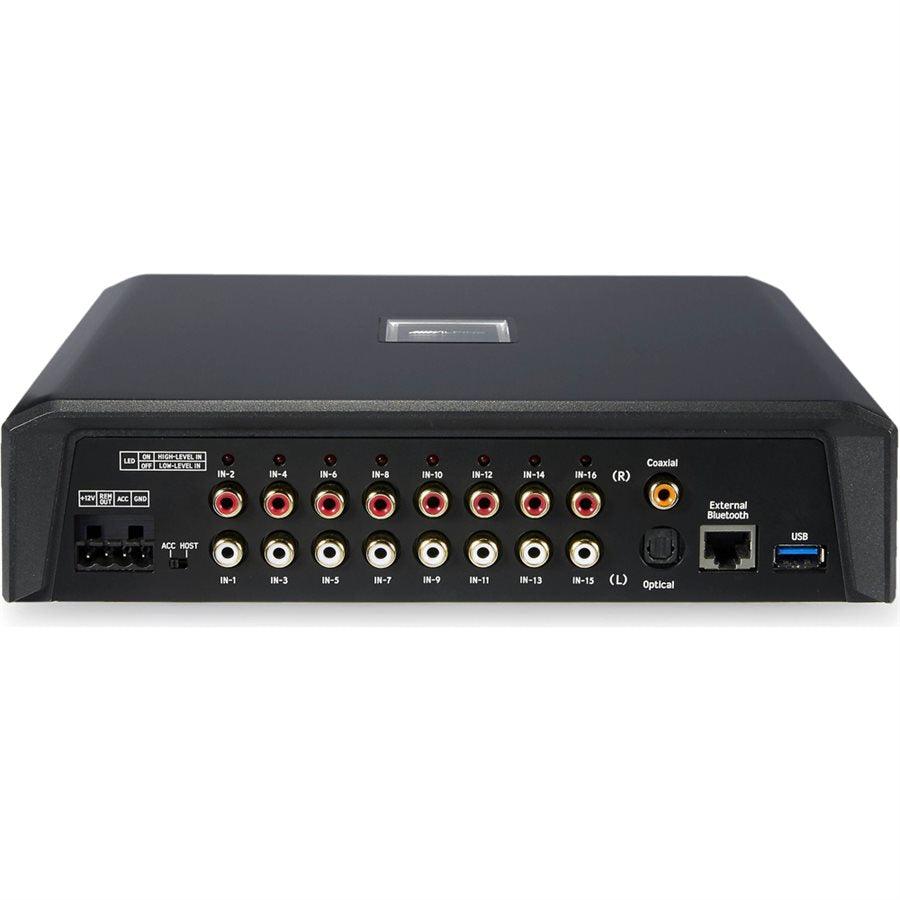

inputs: 16 assignable preamp and speaker-level, optical and coaxial digitalRCA adapters for speaker-level inputs included

outputs: 16 processed channels (RCA)
Processing Details:
16-channel 24-bit 96 KHz digital processor
10-band input equalization (graphic or parametric)
31-band output equalization (graphic or parametric)
adjustable high-, low-, and band-pass filters (20-20,000 Hz)selectable filter slopes (12, 18, 24, 30, 36, 42, 48 dB/octave)
selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley)

delay: 0-20 milliseconds (0-273")
phase adjustment: 0 or 180
More Info:
built-in real-time analyzer (RTA)
can store and recall up to 6 presets
dimensions: 9-3/4"W x 2-5/16"H x 8-5/16"D
MFR # PXE-X09

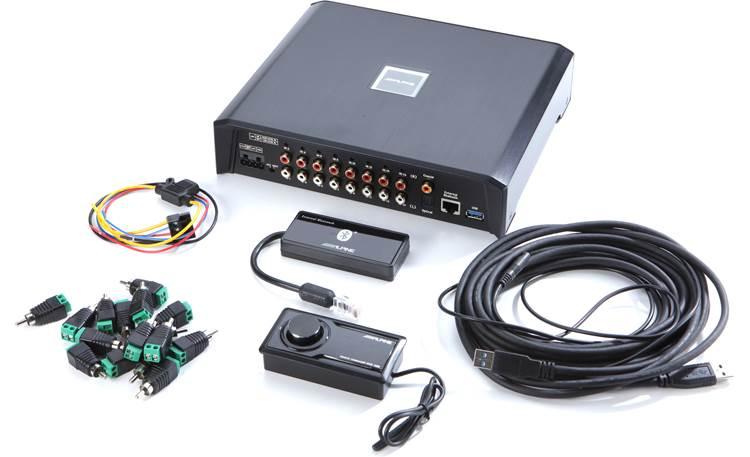

What's in the box:
Alpine PXE-X09 owner's manual
16-Channel DSP processor

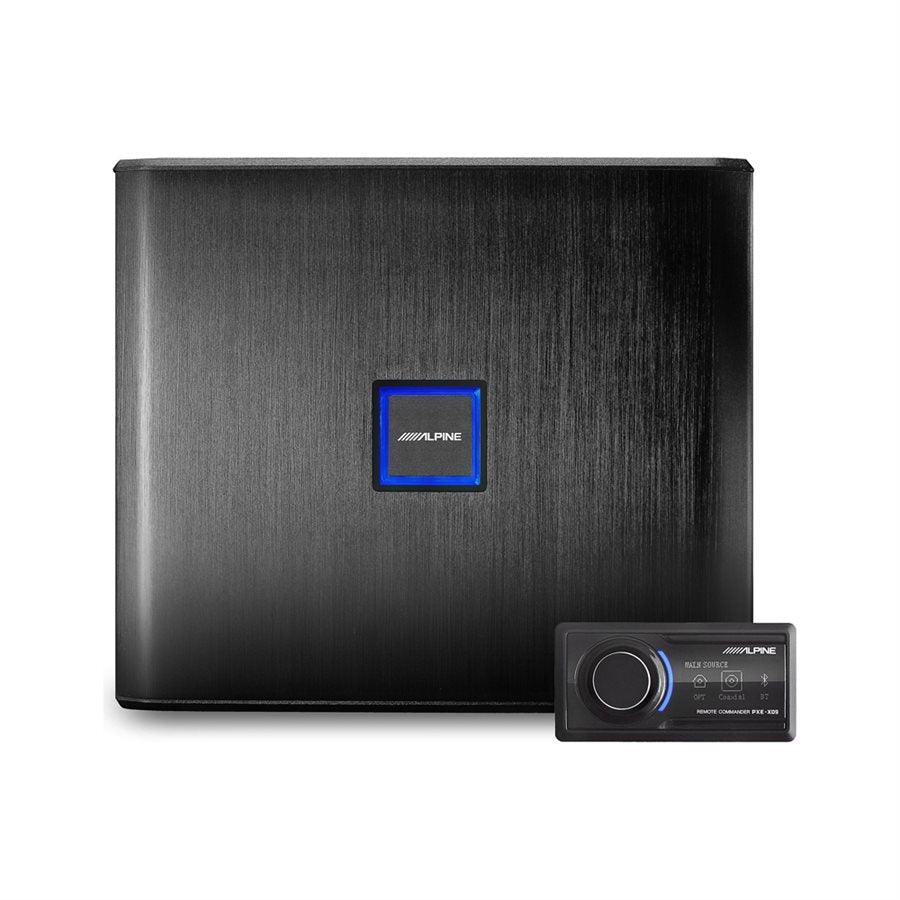

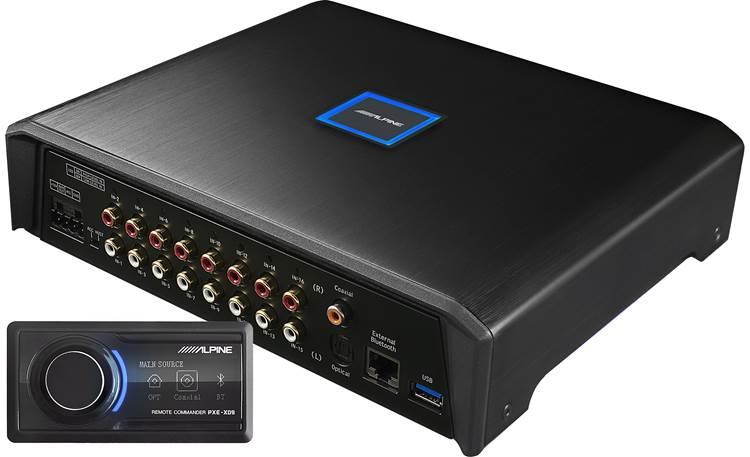

Dash-mount remote commander w/ attached 15.5" connector (4-pin proprietary)
Bluetooth module w/ attached 5" connector (RJ-45)
16' USB Cable (type-A 3.0 both ends) w/ attached 46" remote commander cable (4-pin proprietary)
16 Input connectors (RCA to set-screw terminals)
12" 4-Pin wiring harness (inline 10A mini-ATC fuse)
4 Mounting brackets
Four 3/4" screws
Eight 1/8" machine-screws
Owner's manual
Warranty information
