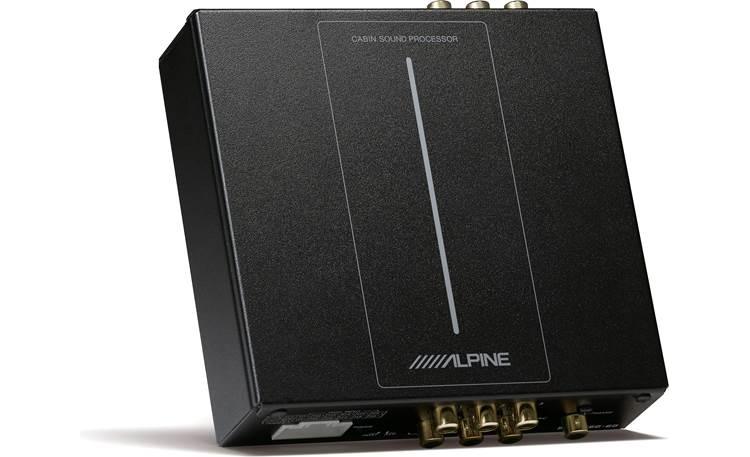

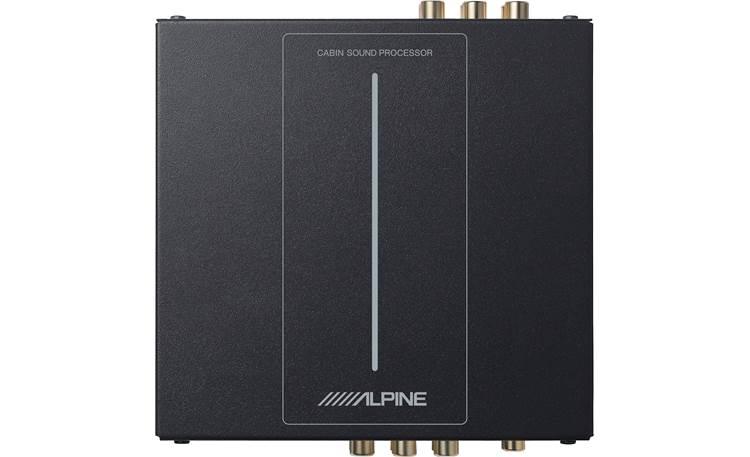

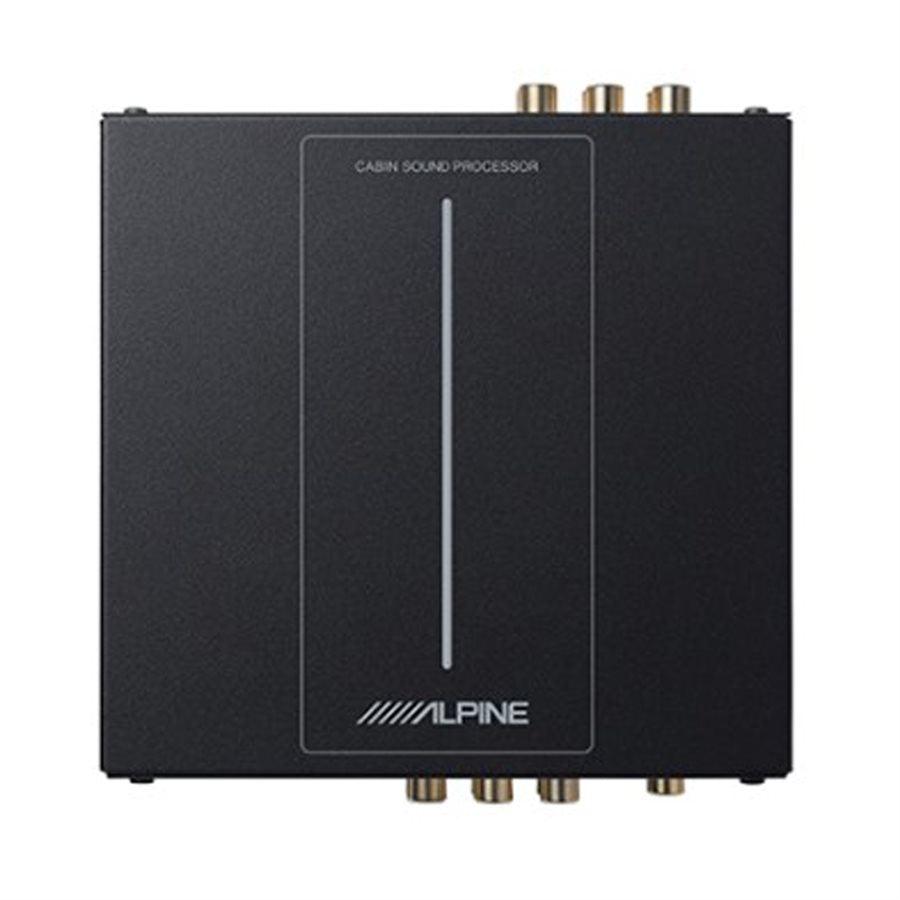

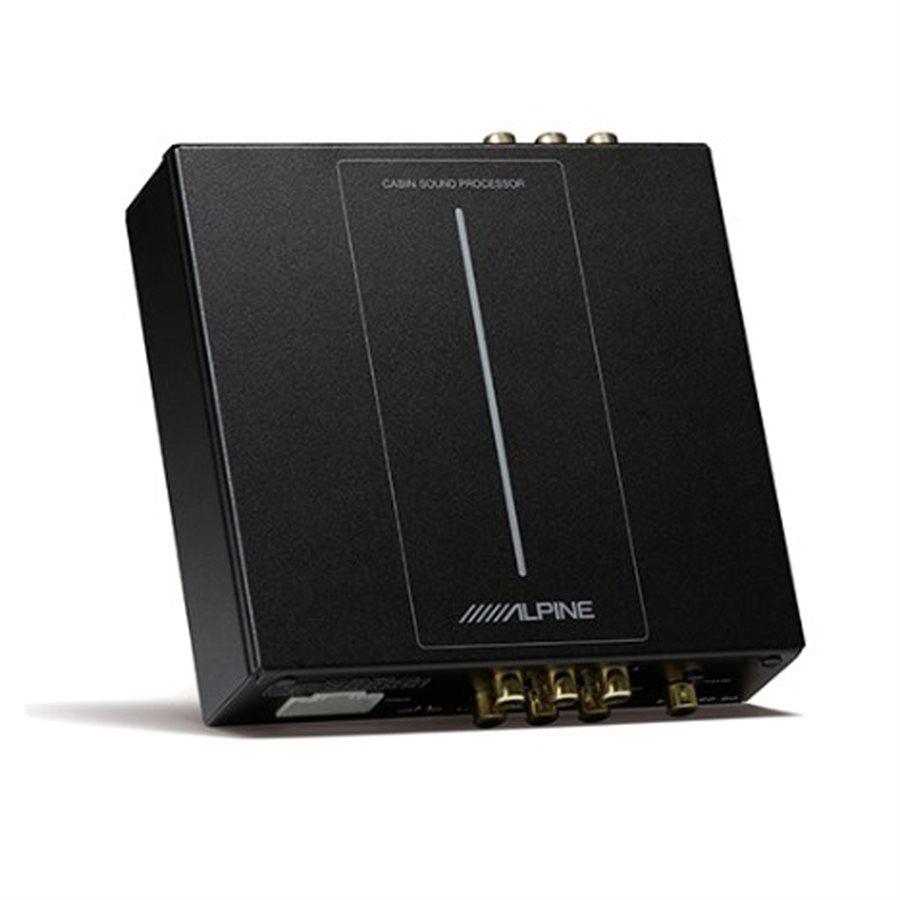

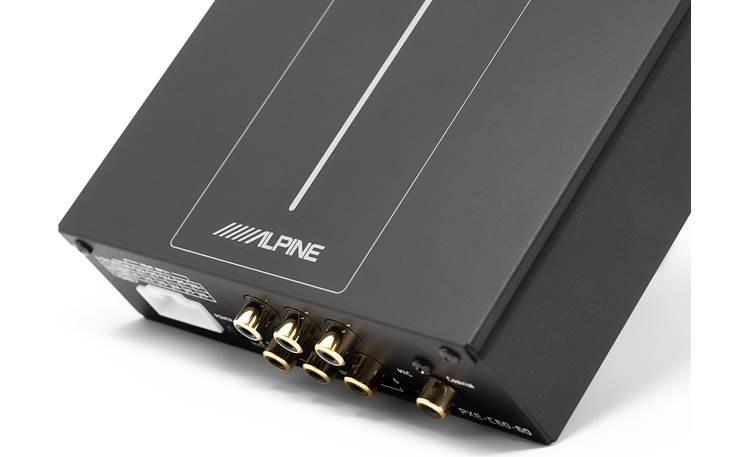

Product highlights:6-channel digital signal processor
High-Resolution processing: 96 kHz, 24-bitfrequency response: 20-40,000 Hz
initial setup made via Alpine's DSP control app on your PC deviceautomatic tuning via iPhone uses built-in mic and Bluetooth connection (dongle included)
automatic and manual tuning via PC uses an external measurement microphone like and USB connection (cable included)
signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
Anti-EQ eliminates factory EQ curves

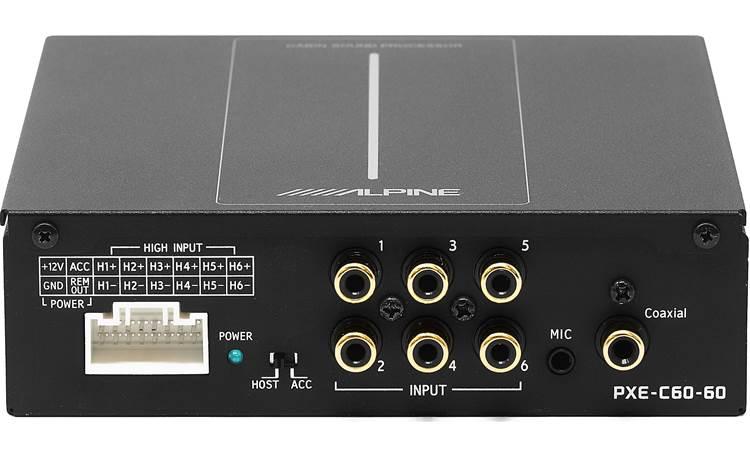

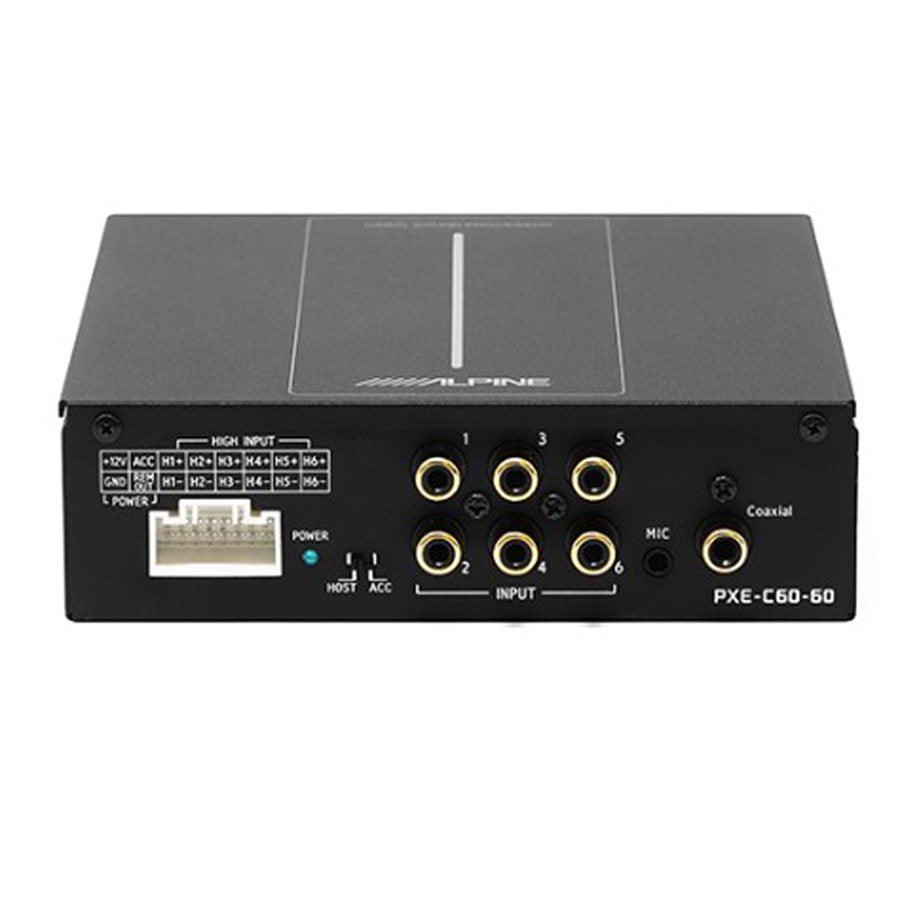

More info: inputs: coax and USB digital (up to 192 kHz, 32-bit); 6-channel high-level speaker (up to 26V); 6-channel RCAamp's remote turn-on circuit ("Switched Power Lead") uses the included high-level input harness

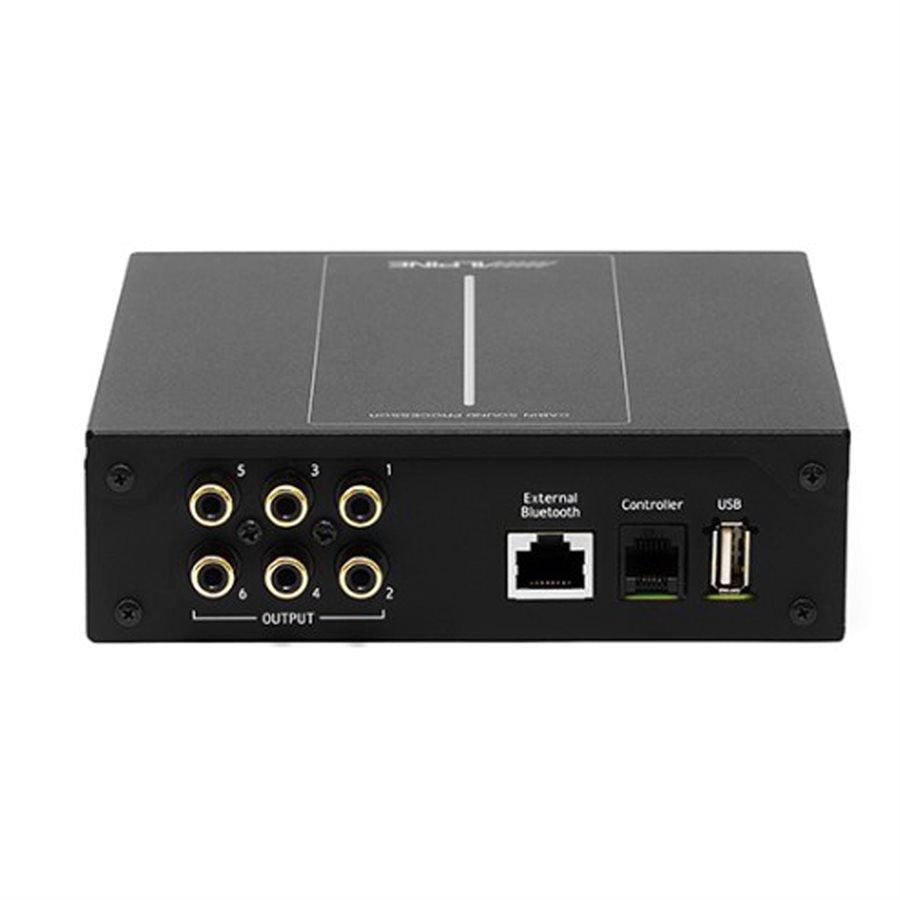

preamp outputs: 6-channel processed (4V)
dimensions: 5.72"W x 1.67"H x 8.46"D (includes wiring)
MFR # PXE-C60-60
What's in the box: 6-Channel DSP processor
CSP Controller (attached 16" cable with 4-pin connector)
16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)
KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
5' USB-A cable (2.0)
6" Wire harness (in-line 5A mini-ATC fuse)
2 Mounting plates
Four 3/4" pan-head screws
Eight 6mm counter-sunk machine screws
Quickstart guide (En/ Sp/ Fr/ Others)
Warranty information
Product registration
FEATURES
