Description

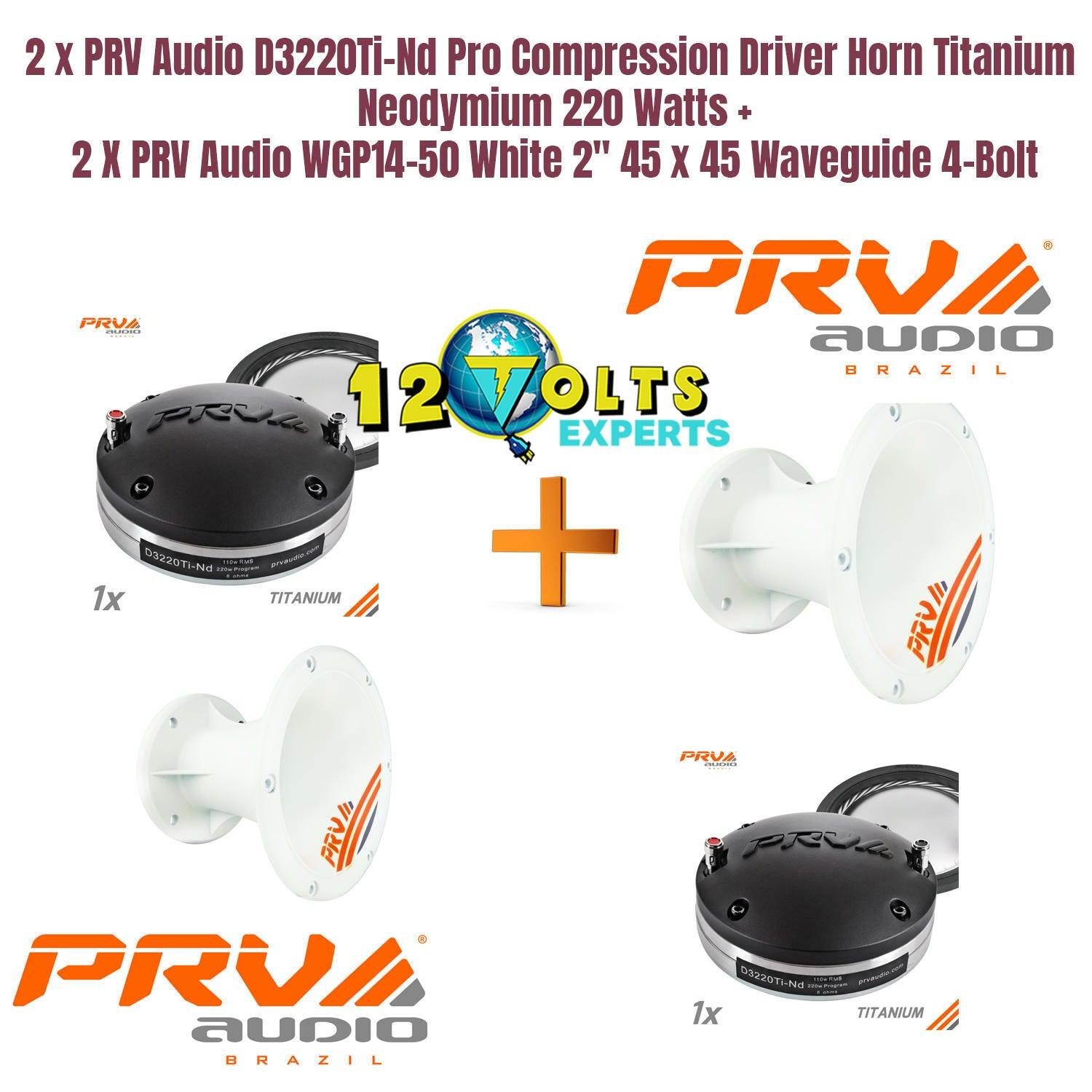

2 x PRV Audio D3220Ti-Nd Pro Compression Driver Horn Titanium Neodymium 220 Watts + 2 X PRV Audio WGP14-50 White 2" 45 x 45 Waveguide 4-Bolt

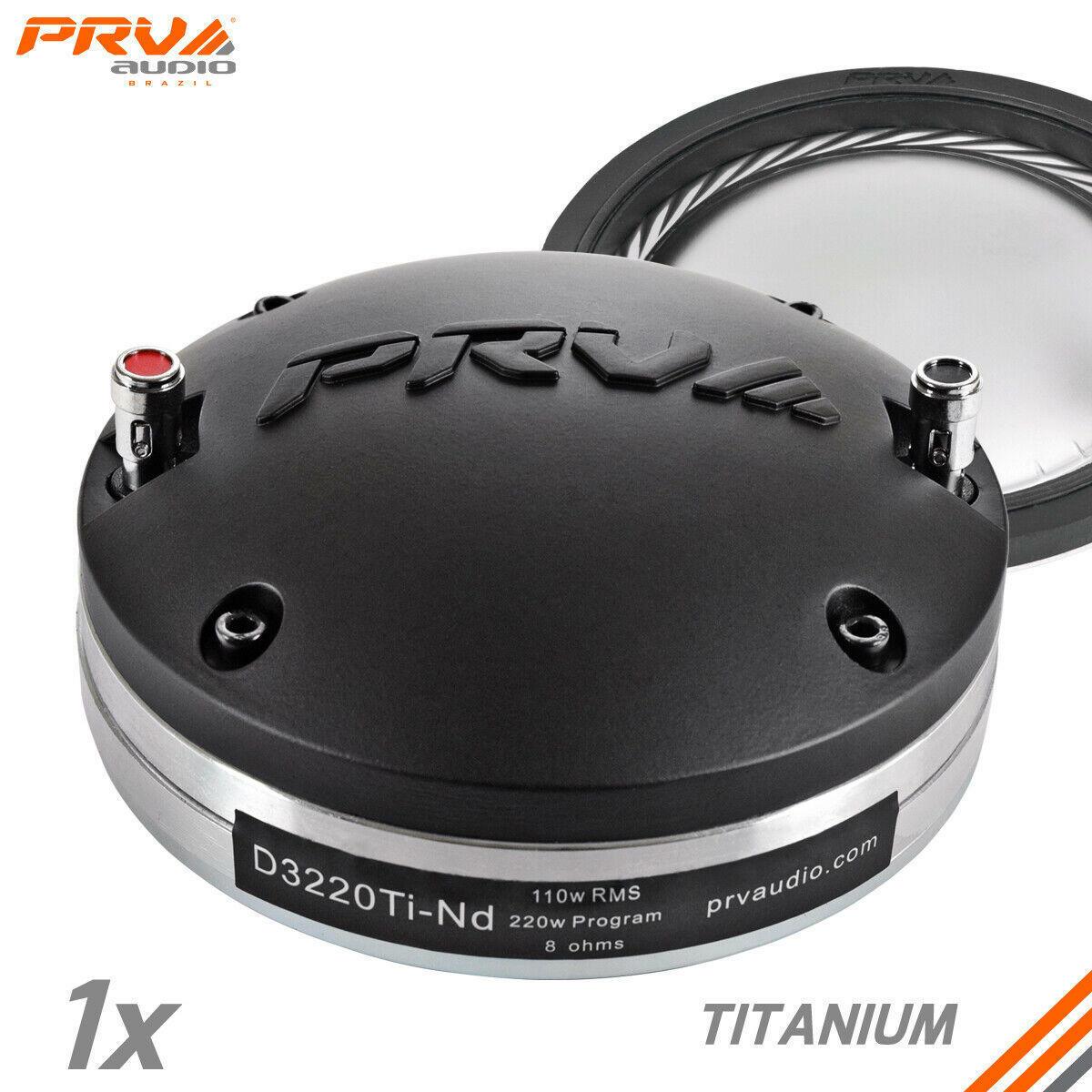

PRV Audio D3220Ti-Nd Pro Compression Driver Horn Titanium Neodymium 220 Watts



D3220Ti-Nd Compression Driver







Features



The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2? exit supported by a 3? voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.



The D3220Ti-Nd is designed to ensure quality sound and long-lasting play in your large environment applications.





Highlights



Throat Diameter: 2"

Type: Bolt-On

Nominal Impedance: 8 Ohms

Rated AES Power Handling (RMS): 110 Watts

Program Power: 220 Watts



Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter



2” (50 mm)



Nominal impedance



8 Ohms



Rated AES Power Handling (RMS)



110 Watts



Program Power



220Watts



Sensitivity 2.83V at 1m



110 dB



Recommended Hi Pass Crossover**

**For Full Power Handling



1600 Hz**

**12db Per Octave Crossover



Frequency Response at -10dB



1,600 – 19,000 Hz



Voice Coil Diameter



3”(76.2 mm)



Voice Coil Wire



Copper



Voice Coil Former Material



Kapton



Diaphragm Material



Titanium



Flux Density



1.80 T



Magnet Material



Neodymium





EXTRA INFO

Overall Diameter



4.88” (124 mm)



Overall Depth



2.21” (56 mm)



Mounting Bolt Circle



M6 x 4 4” (101.6 mm)



Net Weight



 5.00 lbs (2.27 kg)



Shipping Weight



5.27 lbs (2.39 kg)



Carton Dimensions W x L x H



5.71” x 5.71” x 3.35”

(145 x 145 x 85 mm)

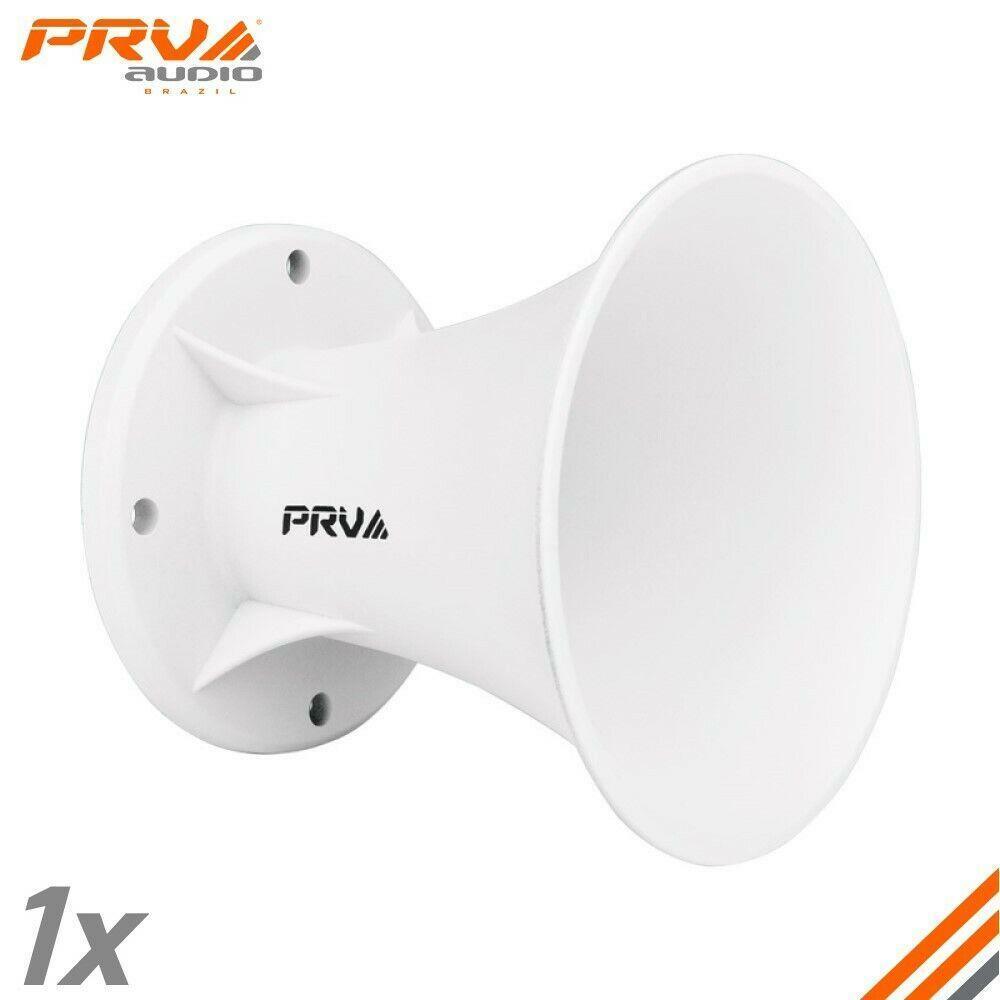

PRV Audio WGP14-50 White 2" 45 x 45 Waveguide 4-Bolt



Give your high efficiency speakers a bit of flare with PRV Audio's WGP14-50 chrome and white finished exponential horn. With a 2" throat and 45° x 45° dispersion, this is perfect for applications where a tight coverage pattern is needed.

Key Features

2" throat with standard 4-bolt mounting pattern

UV resistant coating for use outdoors or in automotive application

Non-resonant reinforced ABS plastic construction

Minimum recommended frequency of 600 Hz
