2 x PRV Audio D3220Ph-Nd Pro Audio Phenolic Neodymium Compression Driver 220W

2 X PRV D3220Ph-ND PRO AUDIO PHENOLIC NEODYMIUM COMPRESSION DRIVER Features The D3220Ph-Nd is the perfect solution...
Vendor: PRV Audio
SKU: 2 x PRV Audio D3220Ph-nd
Availability: In Stock
Product Type: Consumer Electronics
$339.82
$399.95
$339.82
Please hurry! Only 50 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
10 customers are viewing this product

Free Shipping

Free standard shipping on most* orders!

2 x PRV Audio D3220Ph-Nd Pro Audio Phenolic Neodymium Compression Driver 220W

2 x PRV Audio D3220Ph-Nd Pro Audio Phenolic Neodymium Compression Driver 220W

$399.95 $339.82

2 x PRV Audio D3220Ph-Nd Pro Audio Phenolic Neodymium Compression Driver 220W

$399.95 $339.82

2 X PRV D3220Ph-ND PRO AUDIO PHENOLIC NEODYMIUM COMPRESSION DRIVER

Features

  • The D3220Ph-Nd is the perfect solution for mid-high vocal reproduction, offering high sensitivity and a pleasant sound from the phenolic diaphragm. The small diameter of the driver allows front mounting, making it easy to install.
  • The pro audio phenolic compression driver offers unsurpassed vocal and mid range reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.

Highlights

  • Throat Diameter: 2?
  • Type: Bolt-on
  • Nominal Impedance: 8?
  • Rated AES Power Handling (RMS): 110 Watts
  • Program Power: 220 Watts

FEATURES

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter
  • 2? (50 mm)
Nominal impedance
  • 8 Ohms
Rated AES Power Handling (RMS)
  • 110 Watts
Program Power
  • 220Watts
Sensitivity 2.83V at 1m
  • 109 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
  • 800 Hz**
    **12db Per Octave Crossover
Frequency Response at -10dB
  • 600 ? 7,500 Hz
Voice Coil Diameter
  • 3?(76.2 mm)
Voice Coil Wire
  • Copper
Voice Coil Former Material
  • Kapton
Diaphragm Material
  • Phenolic
Flux Density
  • 1.80 T
Magnet Material
  • Neodymium

EXTRA INFO

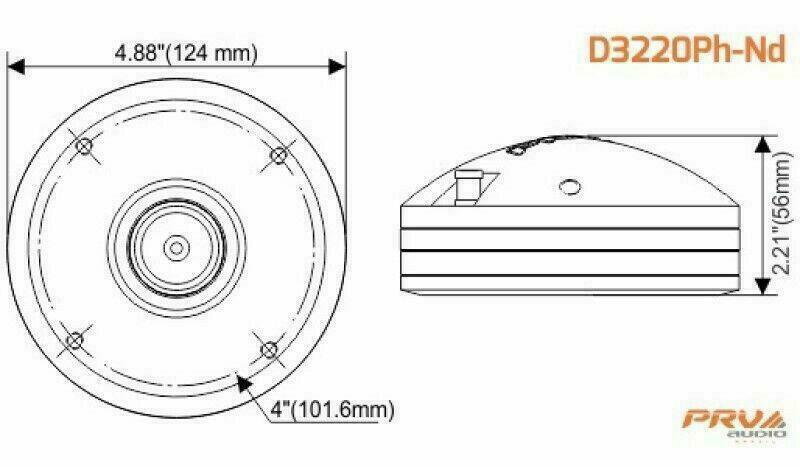

Overall Diameter
  • 4.88? (124 mm)
Overall Depth
  • 2.21? (56 mm)
Mounting Bolt Circle
  • M6 x 4 4? (101.6 mm)
Net Weight
  • 5.00 lbs (2.27 kg)
Shipping Weight
  • 5.27 lbs (2.39 kg)
Carton Dimensions W x L x H
  • 5.71? x 5.71? x 3.35?
    (145 x 145 x 85 mm)
