The PRV 12MB1500 has a very nice linear response, that is well controlled down to 80 Hz, which makes it a great option for 2-way cabinet systems.

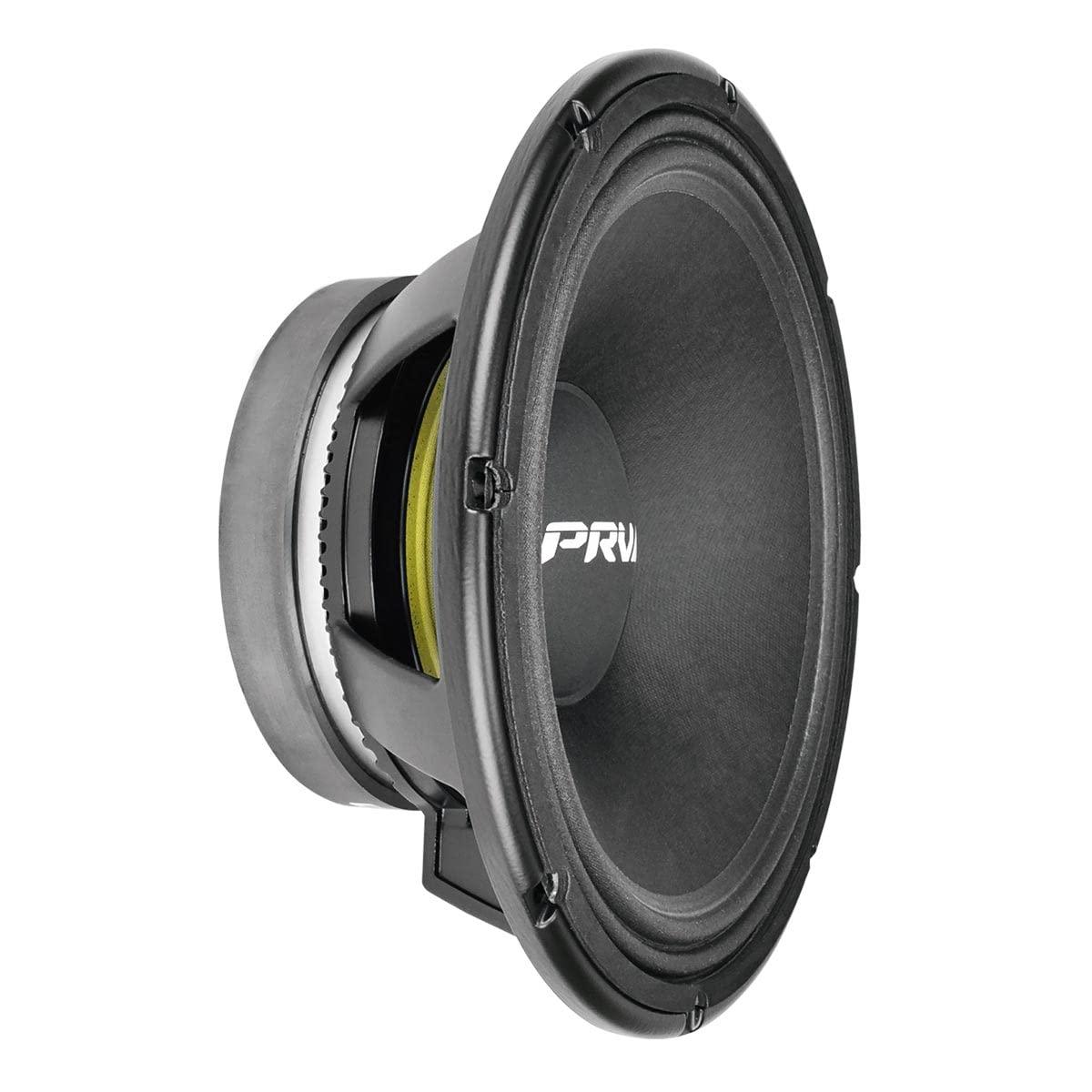

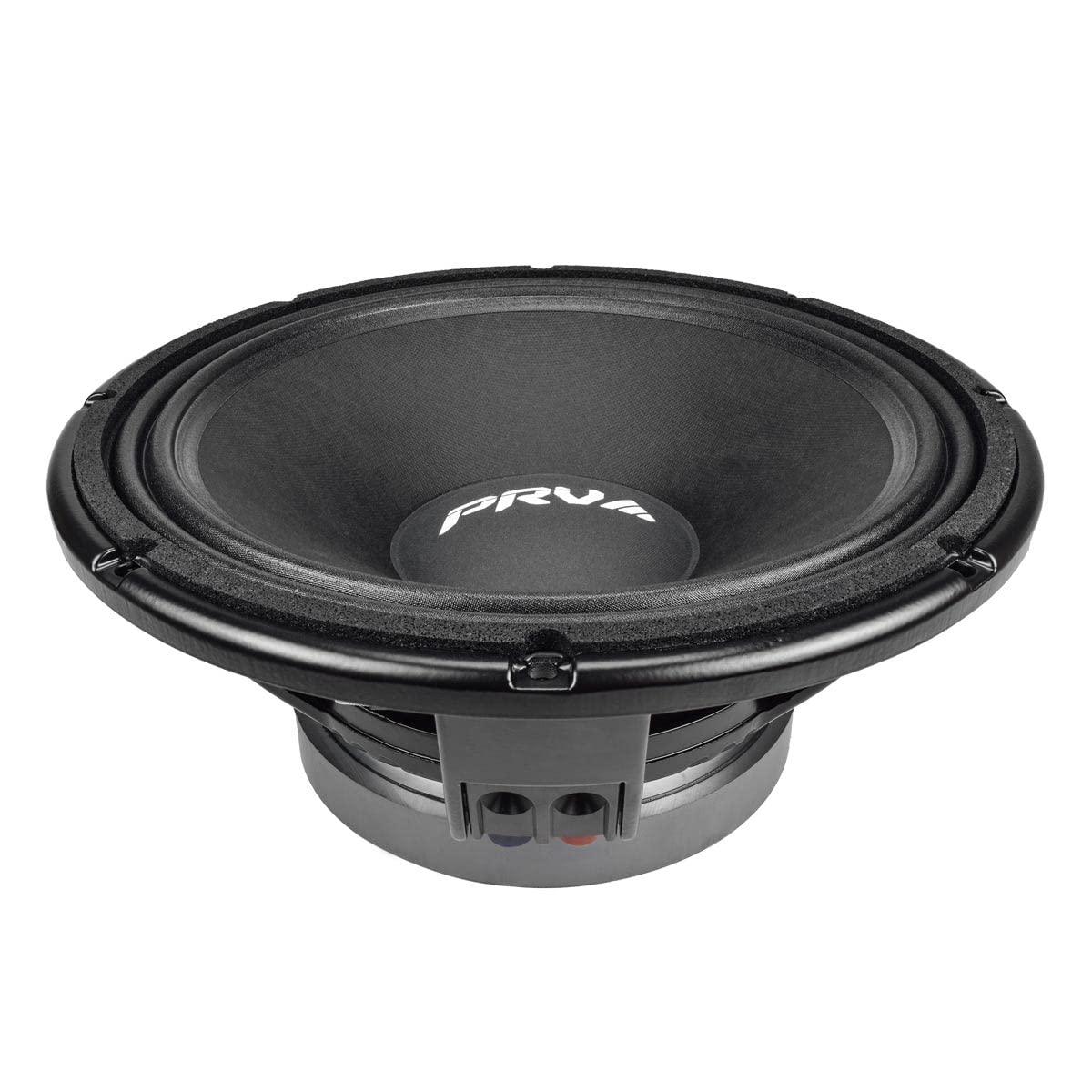

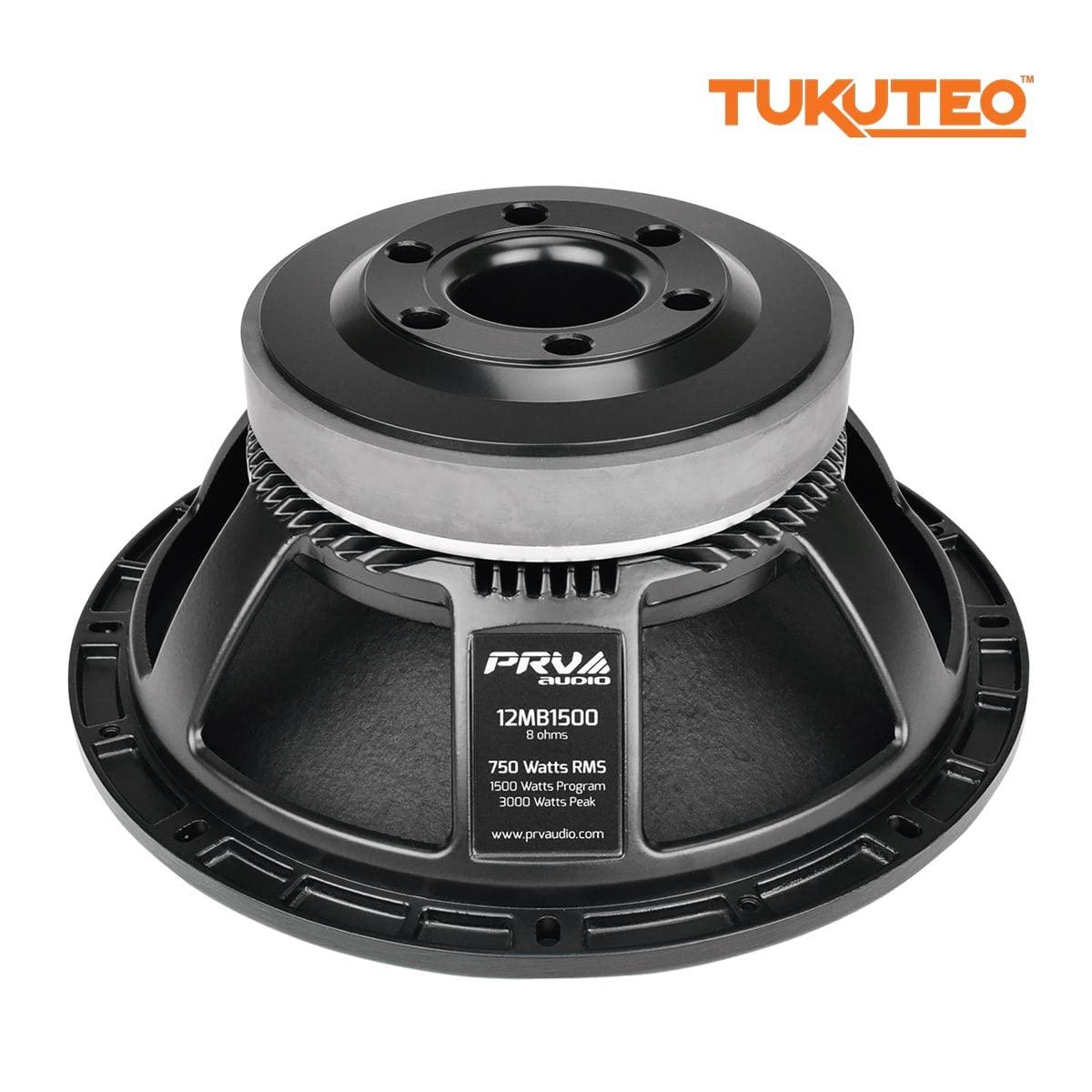

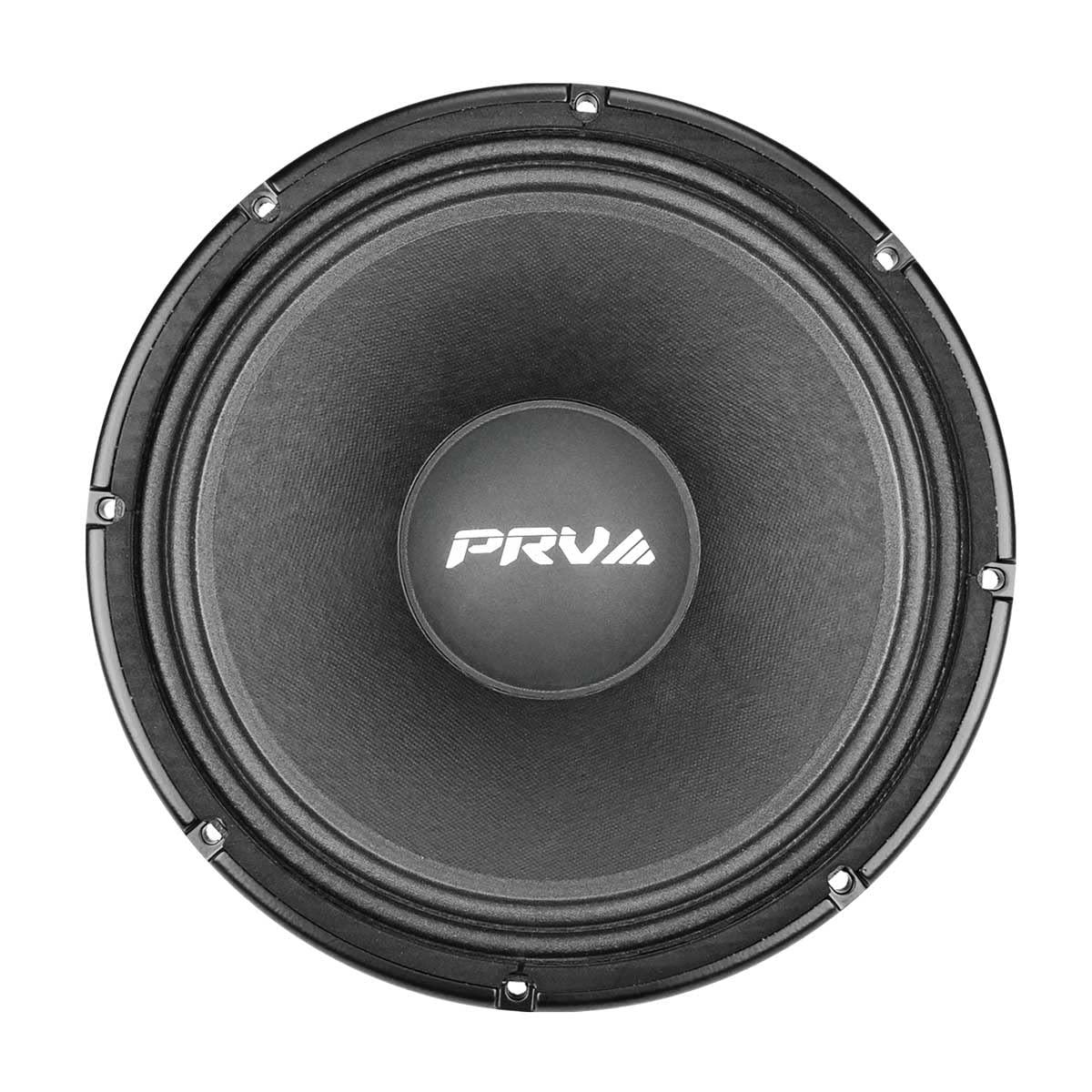

PRV Audio 12MB1500 12" Professional Midbass Driver 8 Ohm
The PRV 12MB1500 has a very nice linear response, that is well controlled down to 80 Hz, which makes it a great option for 2-way cabinet systems.
A strong ferrite motor structure guarantees a dynamic and precise response. The unique 3.5” inside/outside voice coil design provides a very high-power handling especially in comparison to a standard 3” voice coil.
A double silicone spider suspension ensures excellent control during high excursion of 40 mm peak-to-peak before damage. The dual forced cooling system guarantees a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Product Details
Brand PRV Audio
Model 12MB1500
Part Number 294-2980
UPC 602938021807
Unit of Measure Each
Weight 18.7

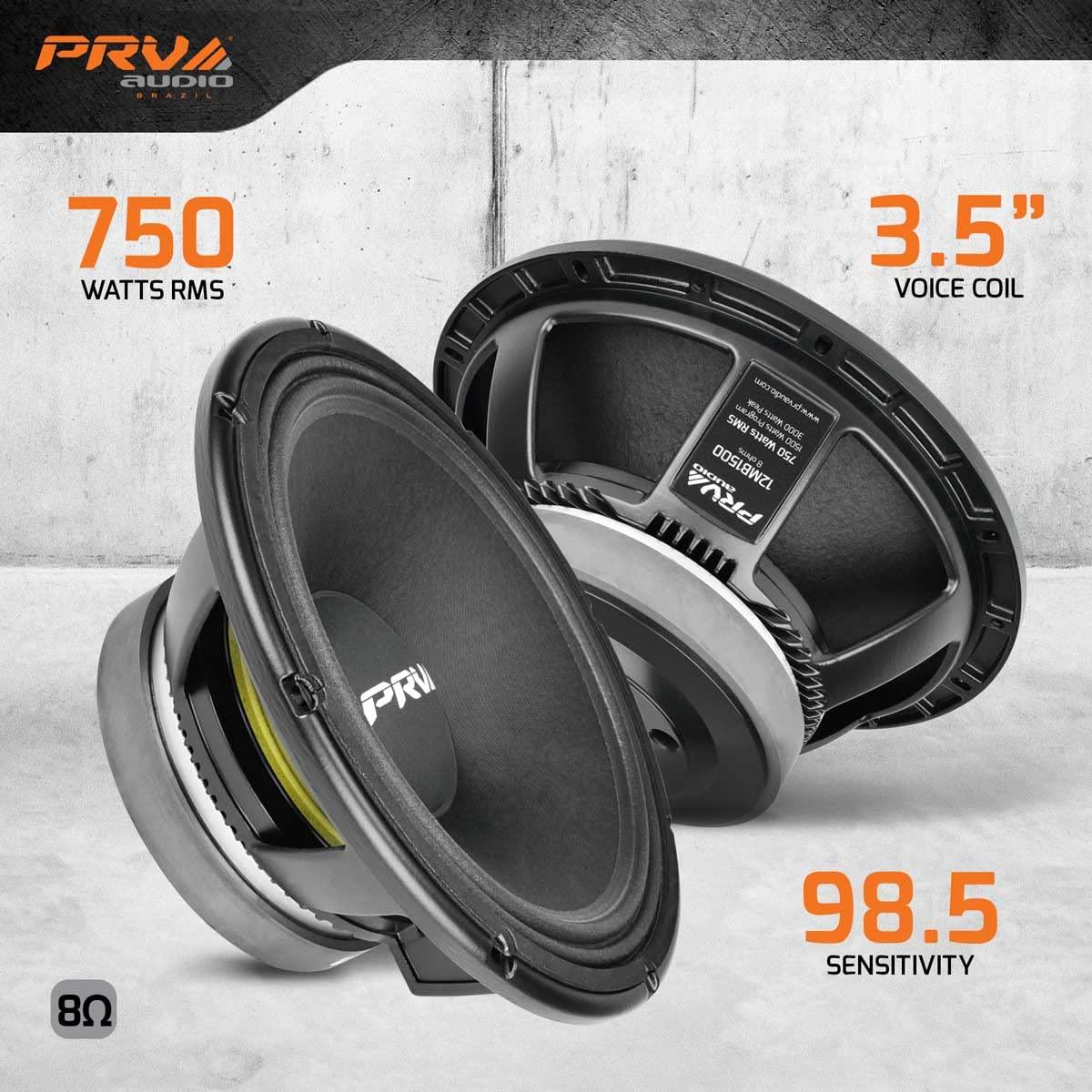

Product Specifications
Nominal Diameter 12"
Power Handling (RMS) 750 Watts
Power Handling (MAX) 1500 Watts
Impedance 8Ω
Frequency Response 75 to 5,000Hz
Sensitivity 98.5dB 2.83V/1m
Voice Coil Diameter 3.5"
Thiele-Small Parameters
Resonant Frequency (Fs) 66.07Hz
DC Resistance (Re) 5.1Ω
Voice Coil Inductance (Le) 1.02mH
Mechanical Q (Qms) 14.66
Electromagnetic Q (Qes) 0.43
Total Q (Qts) 0.42
Compliance Equivalent Volume (Vas) 1.73ft³
Mechanical Compliance of Suspension (Cms) 0.107mm/N
BL Product (BL) 16.39T·m
Diaphragm Mass Inc. Airload (Mms) 54.33g
Maximum Linear Excursion (Xmax) 6.5mm
Surface Area of Cone (Sd) 575cm²
Materials of Construction
Cone Material Paper
Surround Material Cloth
Voice Coil Wire Material CCA
Voice Coil Former Fiberglass
Basket / Frame Material Cast Aluminum
Magnet Material Ferrite

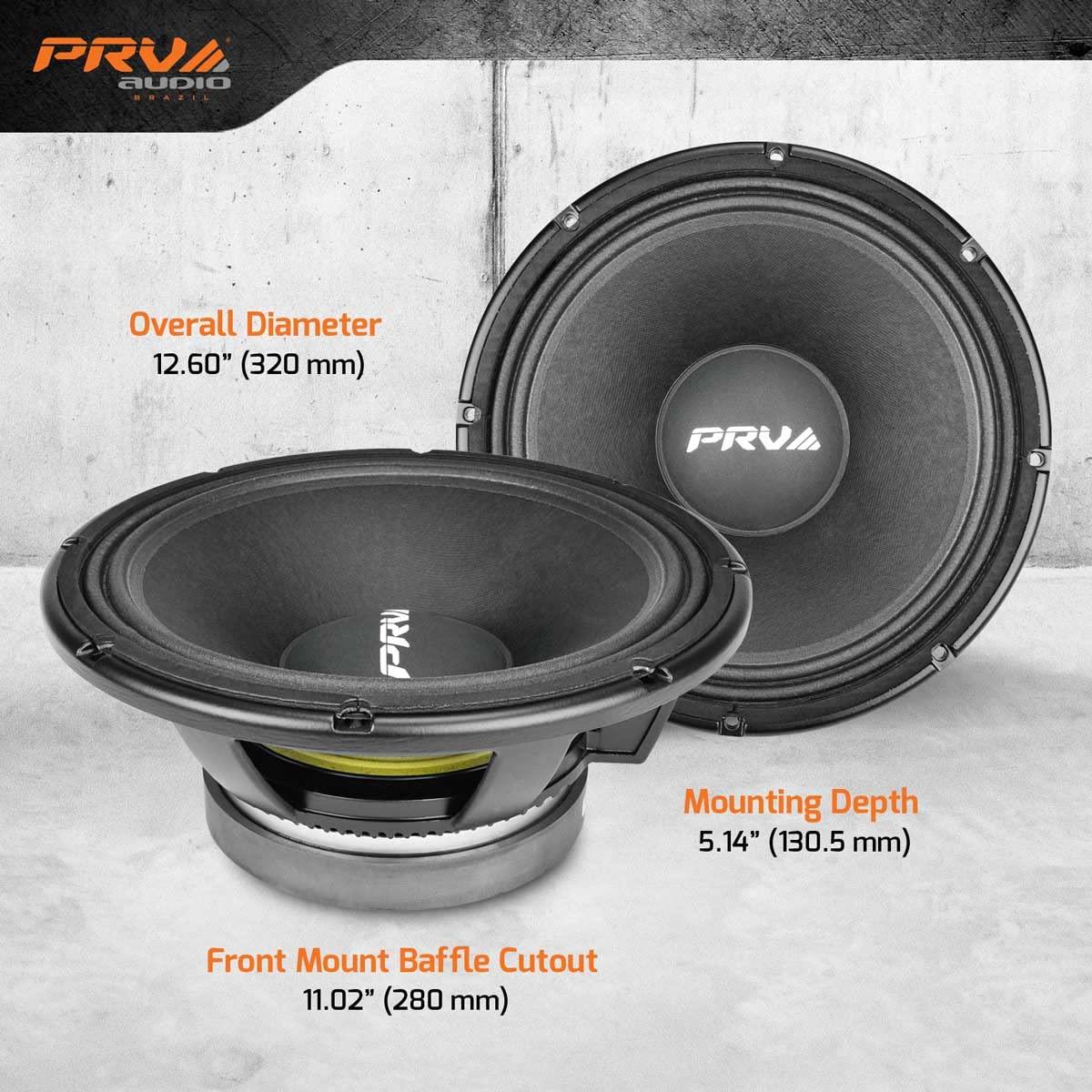

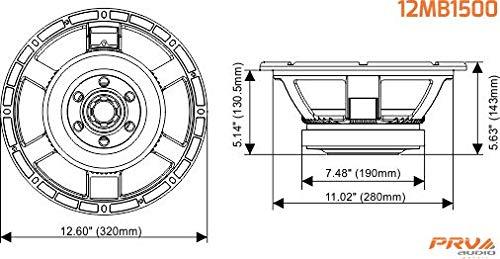

Mounting Information
Overall Outside Diameter 12.60"
Baffle Cutout Diameter 11.02"
Depth 5.14"
# Mounting Holes 8
Parts Express Staff Recommended Enclosure Volume
Sealed Volume 1ft³
Sealed F3 124.9Hz
Vented Volume 2ft³
Vented F3 61.7Hz
